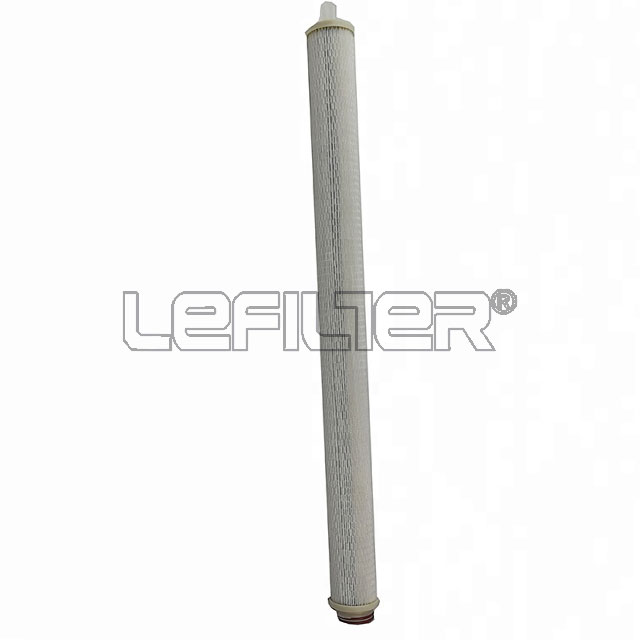

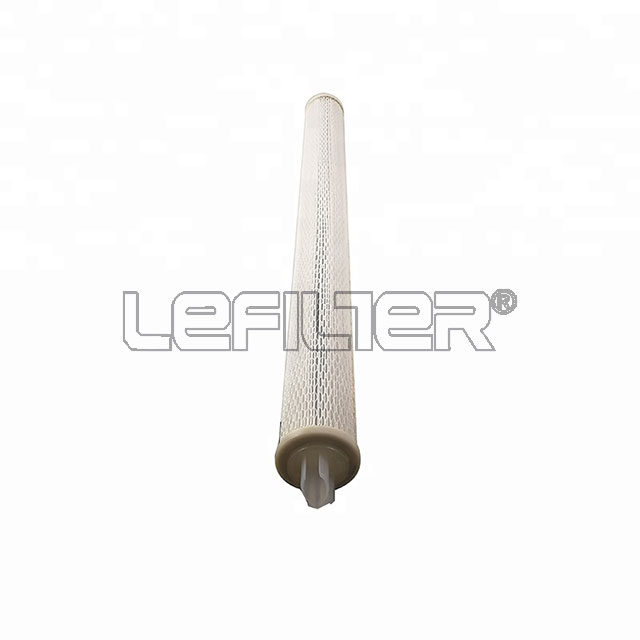

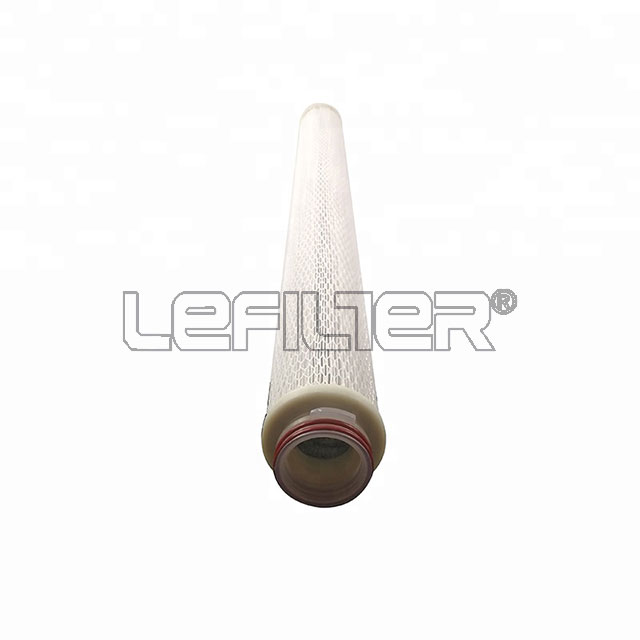

Natural gas filter PECO oil and gas filter PS-336-CC-20- LB

Read Reviews23 Q&As Write a Review
Lefilter elements feature microglass filtration media. Designed specifically for micro-filtration, Lefilter elements are optimized to provide high flow rates, and excellent contaminant loading capacity at absolute micron ratings. End ca

PARAMETER

Brand Name: PECO

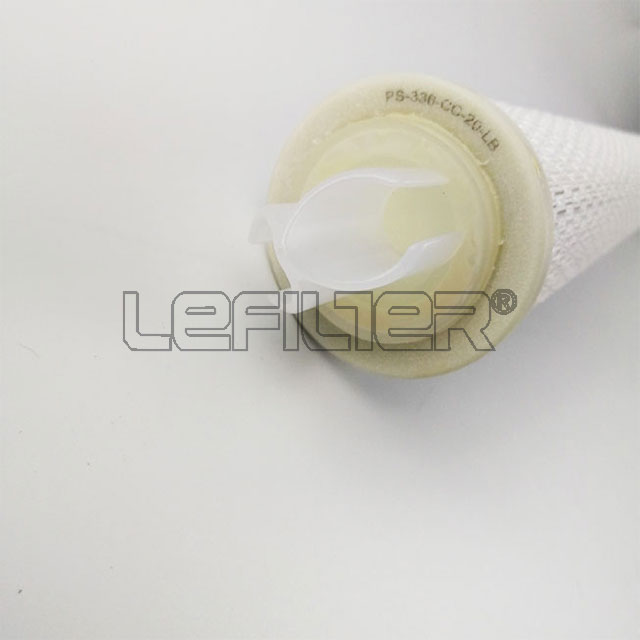

Model Number: PS-336-CC-20- LB
Nominal filtration rating:10
Application:1).Gas Processing Amine and glycol 2).Natural Gas Production & Gathering Amine, glycol, produced w
Operating pressure:110/75/50
Working temperature: 240F
Replacement or not:Replacement

Natural gas filter PECO oil and gas filter PS-336-CC-20- LB








Pleated Microglass Elements
Lefilter elements feature microglass filtration media. Designed specifically for micro-filtration,Lefilter elements
are optimized to provide high flow rates,and excellent contaminant loading capacity at absolute micron ratings.

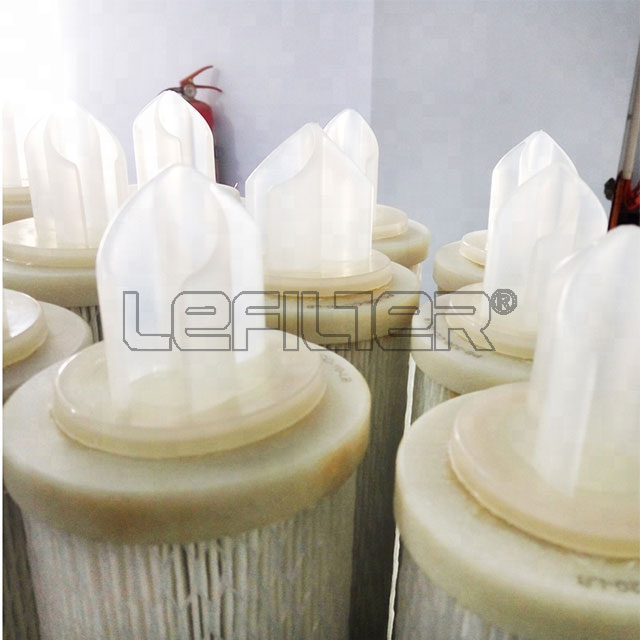

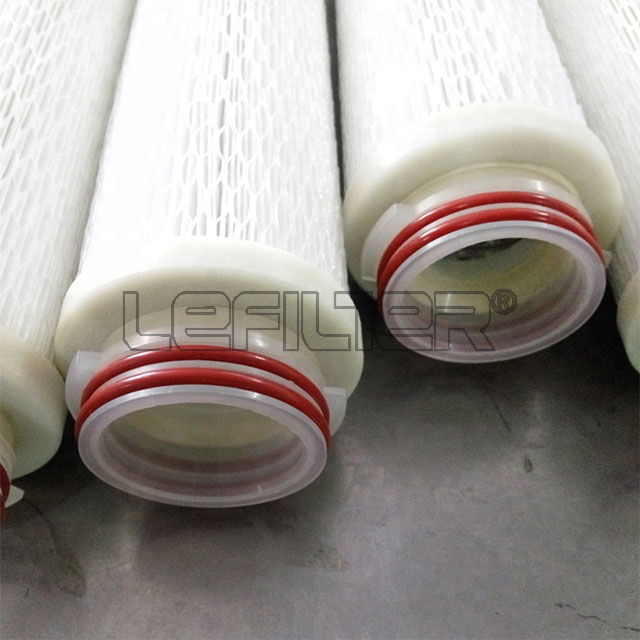

End caps, media, cores and netting are all thermally bonded providing a high degree of compatibility with a wide
range of process fluids.Lefilter elements are available with common endcap configurations, such as double open end,
single open end, 222 o-rings, 226 o-ring with locking ears, fins, and core extenders. When you need micro-filtration
that performs, ask for Lefilter.

T H E B O T T O M L I N E
1).Synthetic Hardware
Improved process compatibility over cellulose products.
Ensures against failures that lead to untimely process upsets and shut-downs.

2).Optimized Surface Area & Configuration
Allows thorough usage of the filter media, translating into fewer element change-outs and reduced operations and maintenance
costs.Our microglass media offers higher porosity than polymeric medias. With more porosity you can expect longer service life
and lower energy demands.

3).Common Sizes and End Cap Styles
Easy installation in existing housings without modifications.Saves costly downtime and maintenance expenses associated with
housing modifications.

A P P L I C A T I O N S

1).Gas Processing
Amine and glycol

2).Natural Gas Production & Gathering
Amine, glycol, produced water, well completion fluids

3).General Industrial
Pre-R.O., well injection, bottle wash, water, solvents,acids, alkalis, alcohols

4).Industrial
Water, solvents, acids, D.I., alcohols

5).Food & Beverage
Water, flavorings, beer, wine, vinegar

SPECIFICATIONS

M A T E R I A L S
MEDIA:microglass
CORE:polyester
OUTER NETTING:polyester
END CAPS:polyester
SPRINGS:polypropylene, steel, stainless steel
GASKET:buna-n
OPTIONS:gasket materials, steel hardware,various support layer materials

O P E R A T I N G D A T A

Media Max
Temp. [F]
pH
Range
Max D.P. 1 [psid]
80F / 125F / 180F
Microglass 240 3 0 - 9 110/75/50

Recommended change-out D.P. is 20 psid.
Normal flow direction is outside to inside

N O M I N A L D I M E N S I O N S

Model O. D.
[in.]
I.D.
[in.]
Length
[in.]
Surface Area
[ft 2 ]
PS-209 2.5 1.08 9.75 3.7
PS-210 2.5 1.08 10 3.7
PS-219 2.5 1.08 19.50 7.3
PS-220 2.5 1.08 20 7.3
PS-229 2.5 1.08 29.25 11
PS-230 2.5 1.08 30 11
PS-240 2.5 1.08 40 14.5
PS-336 3.0 1.545 36 14.5

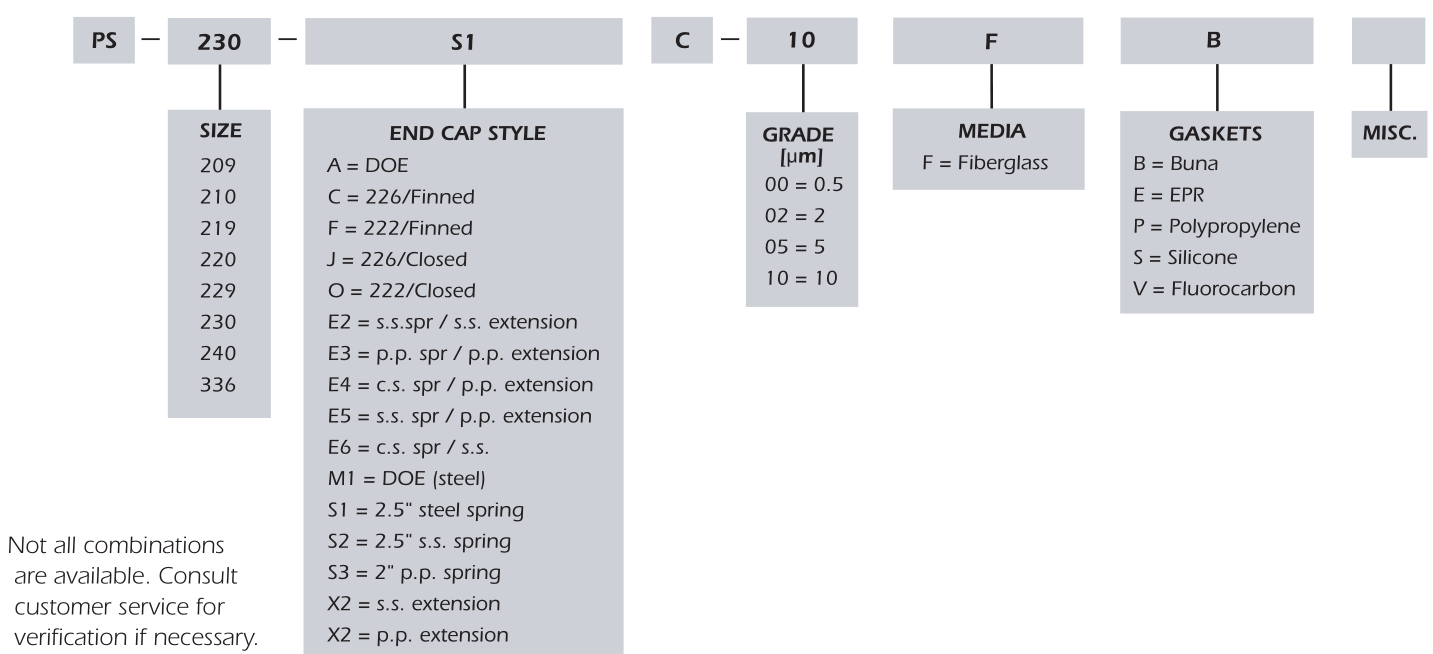

O R D E R I N G I N F O R M A T I O N



Q:Are you a manufacturer or a trading company?
A: Manufacturer with our own factory.

Q: What is the method of payment?
A: Usually, we accept payment by T/T,L/C,western Union,Paypal and Alipay.Other terms of payment depend on the circumstances.

Q: How long will it take you to deliver?
A3:Spot goods will be shipped within 3 days. Large quantities of goods need to be confirmed through negotiation.

Q: Can I buy a few for my initial order?
A: Yes, we are making a small sample order.

Q: Can I get some free samples?
A: Of course. Sometimes, we can provide you with free samples, but you should pay the express fee.

Q: How Can I Trust You In My First Business?
A: Please pay attention to our above business license and certificate. We are an Alibaba SGS certified factory. If you don't trust us,
we can use Alibaba's trade guarantee service to guarantee your funds and ensure the timely delivery and quality of your products.

Q: How Do We Ensure The Quality Of The Products After Placing The Order?
A: Before delivery, we will send you pictures and videos of the filters for you to check the quality. You can also arrange the quality
check by yourself or through your contacts in China.
