The oil must be purified before being injected into the system. The pollution degree of the new oil without purification often exceeds the requirements of the actual hydraulic regulations. Even the new oil just extracted from the oil tank is not suitable for direct use. New oil may be mixed with various pollutant particles and moisture during processing, blending and storage. LYC series high-precision oil filter is an ideal equipment for pre filtering, oiling and purifying the system oil.
The coalescing dehydration oil filter has a five stage filtration system, which integrates the functions of precision filtration and high-efficiency dehydration. The "coalescing separation" technology from the United States is introduced for dehydration. It has high dehydration efficiency and strong capacity. It is especially suitable for separating a large amount of water in the oil, which is far better than the dehydration capacity of the centrifugal method. It can break all the oil-water emulsion structure in the medium; Through the filtration of the particle filter system, the cleanliness of the medium can be stably controlled in the state required by the system to ensure the cleanliness of the oil; Do not change the physical and chemical properties of the oil, and extend the service life of the oil; Low energy consumption and low operation cost; The system has excellent configuration, strong continuous working performance and is suitable for online operation.
Vacuum oil filter is designed according to the principle of different boiling points of water and oil. It is composed of fine filter of vacuum heating tank, condenser, primary filter, water tank, vacuum pump, oil drain pump and electrical cabinet. The vacuum pump draws out the air in the vacuum tank to form a vacuum. Under the action of atmospheric pressure, the external oil enters the primary filter through the inlet pipe to remove large particles, and then enters the heating tank. After heating, 40~75*c oil passes through the automatic oil float valve, which automatically controls the inlet and outlet balance of the oil entering the vacuum tank.
With the new environment-friendly filter element, it can effectively filter solid particles of a variety of liquids in a variety of occasions. The filter material is made of patented fiber and resin through a special process and has a fixed process structure. The intercepted pollutants will not cause unloading due to the pulsation of flow and pressure difference. It can not only be used as a device for filling and filtering new oil in the hydraulic system, but also as a special device for regularly filtering pollutants in the system medium. At the same time, it can also deal with the pollution of the hydraulic system and prolong the service life of hydraulic components, Ensure the normal operation of the system.

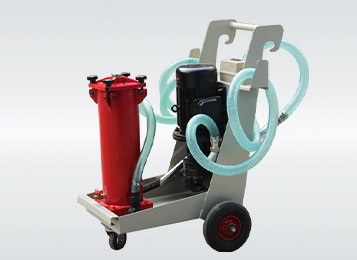

The replacement for HYDAC oil filter belongs to the portable oil filter truck series. It can be used as a hydraulic oil filter when new oil is filled, and the purpose of filtering is completed when new oil is filled. The oil filter truck is mainly used in the lubrication system of major power plants, steel mills and other industries, which can effectively control the pollution degree of the working medium and achieve the purification effect of oil constant precision. It is mainly composed of motor, filter pump and filter, which is convenient and fast to use. As long as the oil inlet pipe and oil outlet pipe of the oil filter are inserted into the oil tank to be filtered, the motor can be started.
The lyc-c box type mobile oil filter truck can be equipped with an oil tank. The oil in the self-contained oil tank can be directly injected into the system after reaching the standard through self circulation filtration. It is especially suitable for hydraulic systems containing servo valves, proportional relief valves and other precision components.
High viscosity oil filter is a filter unit that uses pressure filtration or vacuum evaporation pressure filtration to remove impurities and moisture in impure oil. The oil filter is mainly used to improve the insulation performance of electrical oil and the purity of lubricating oil.
LUC fine oil filter is characterized by high oil filtering precision, reliable performance, compact structure, beautiful appearance and flexible movement. Users can choose freely according to their needs. As long as the filter elements with different precision are exchanged, the use requirements can be met. The fine oil filter truck can fill or regularly filter the oil of hydraulic system, static pressure system, lubrication system and various oil systems. It also has a certain economic effect on the recovery of dirty oil. It is an ideal energy-saving equipment. The fine oil filter truck only filters out impurities in the oil. It has no effect on various indicators of the oil.
