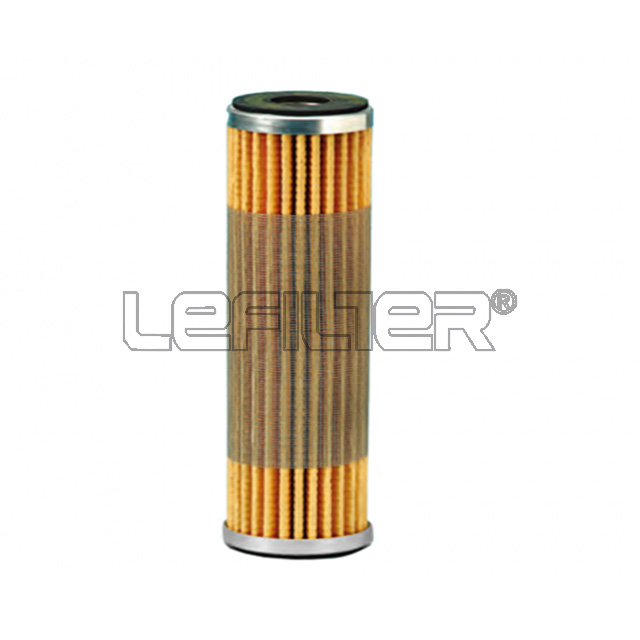

Velcon Equivalent Water Absorbing Cartridges AC Series
Description:
1).Function:Remove Water and Dirt from Oils, Fuels and Gases
2).Features:
•Removes free and emulsified water to less than 2 ppm
• Differential pressure increase alerts operator to change cartridges
• Effectively filters silt and other particulates
• No media migration or “linting”
• Easy to install and remove
• Does not affect oil additives
• Fits standard filter housings
• Not affected by surface active agents
• Contains no asbestos

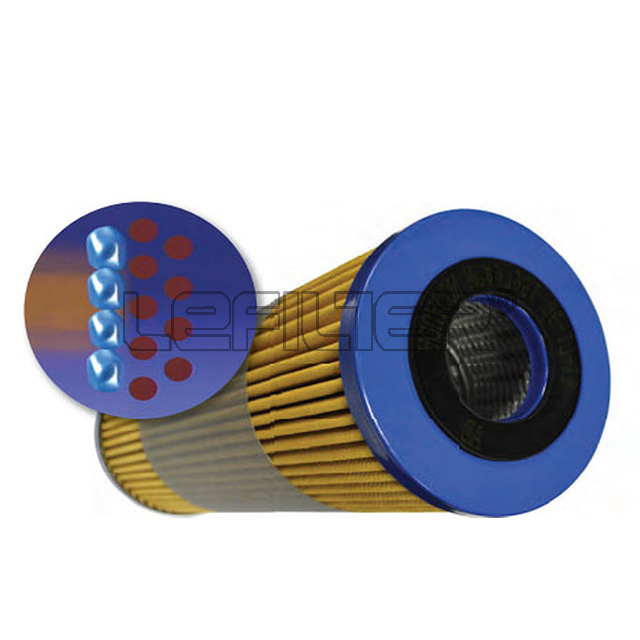

AC series Cartridges have a patented construction for removing dirt and water from hydrocarbon and other oils as well as gases.
The outer media layer filters out silt,rust and other particulate contaminants.The inner layers absorb water and chemically bond it
so that no water will release downstream.When the AC series Cartridge reaches its water holding limit, the media swells shut and
the differential pressure rapidly increases.This signals the operator that the cartridge must be changed.
3).APPLICATIONS
Gasoline Transformer Oil Synthetic Oil
Kerosene Hydraulic Oil Phosphate Ester Oil
Diesel Fuel Turbine Lube Oil Instrument Air
Insulating Oil Quench Oil Process Gases
4).TECHNICAL INFORMATION
1. Maximum operating temperature is 250°F.
2. AC series Cartridges will shut off flow when loaded with water or dirt. Appropriate precautions should be taken in critical applications where oil flow must be maintained.
3.With some lube and hydraulic oils all of the water may not be removed in one pass, and extra passes will be required for total removal.
4.Water capacity for the AC-718 cartridges ranges from 2 to 4 quarts.
5).CARTRIDGE INFORMATION
|
Model Number |
Micrometer Rating |
I.D.
Inches |
O.D.
Inches |
Length
Inches |
Collapse
Pressure,psi |
Interchange
Information |
|
|
Nominal |
Beta x=75 |
|
|
|
|
|
|
AC-21005(1) |
5 |
40 |
1 |
2 5/8 |
9 3/4 |
75 |
Fits Velcon VF-31 Housings |
AC-5121/2E(2)
AC-51205 |
5
5 |
3
40 |
1 7/8
1 7/8 |
5 5/8
5 5/8 |
12 1/8
12 1/8 |
75
75 |
Fits Velcon VF-61 Housings |
AC-61405
AC-62905
AC-64405 |
5
5
5 |
40
40
40 |
3 1/2
3 1/2
3 1/2 |
6
6
6 |
14 1/2
29 1/2
44 |
100
100
100 |
Interchanges with Velcon FO-614PLF,FO-629PLF,
and FO-644PLF Series Cartridges |
AC-718P3(2)
AC-7181/2(2)
AC-718P4D
AC-71801
AC-71805
AC-7361/2(2)
AC-7301
AC-73605 |
0.3
0.5
0.4
1
5
0.5
1
5 |
2
3
2.5
6
40
3
6
40 |
2 9/16
2 9/16
2 9/16
2 9/16
2 9/16
2 9/16
2 9/16
2 9/16 |
6 1/4
6 1/4
6 1/4
6 1/4
6 1/4
6 1/4
6 1/4
6 1/4 |
18
18
18
18
18
36
36
36 |
75
75
75
75
75
75
75
75 |
Fits Velcon industrial housings and portable filters,
interchangeable with Velcon FO-718PL and FO-736PL Series Cartridges |
