Parker & Velcon FO series coalescer filter cartridge euqivalent for Aviation Fuel



1.Brife introduction:

Xinxiang Lifeierte Filter Corp., Ltd is a public listed company in China,stock number 837936.
With over 13 years' manufacturing experience,3 factroies.

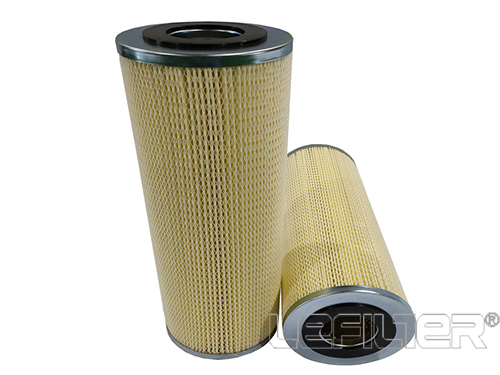

For the Parker & Velcon FO-718PLxx series coalescer filter cartridges,we can manufature
euqivalent,they are mainly used for Aviation Fuel filtration.

FEATURES


1).Large Surface Area

Allows high flow rate with low initial pressure drop and maximum contaminant holding capacity.

2). Resin Impregnated Media


Maintains strength, resists effects of water and heat.


3).75 psi Collapse Strength


Heavy gauge carbon steel endcaps and center tube give safety margin against pressure surges.


4).Coated Steel Components


Resist corrosion from most industrial fluids.

5).Corrugated Media

Prevents pleat pinch-off,assuring all filtration media is utilized.


6).Buna-N Gaskets


The best general gasket material available assures positive seal in most fluids.


7).Thermoset Bonding Material

Durable endcap to-media bond prevents internal bypassing.


8).Threaded Base Filter Elements


Available for easier installation.

2.SPECIFICATIONS

1).Collapse strength: 75 psi

2).Operating pH range: 5 - 9

3).Micron ratings: ¼ to 75

4).Nominal filtration efficiency: 98%+

5).Maximum operating temperature: 250°F (121.1°C)

6).Recommended changeout differential pressure: 15 psid for Aviation applications

7).Multi-pass (Beta Ratio) data available on request

3.CARTRIDGE INFORMATION

The following table lists a few of the broad range of available Parker Velcon cartridges equivalent.
Your Lefilter representative can provide more complete information.

Model	Dim.	Nominal Micron Rating	Protective Outer Wrap
FO-718PLP3	6 1/4” x 18” x 2 9/16”ID	0.3	No
FO-718PL1/2	6 1/4” x 18” x 2 9/16”ID	1/2	No
FO-718PL01	6 1/4” x 18” x 2 9/16”ID	1	Yes
FO-718PL02	6 1/4” x 18” x 2 9/16”ID	2	Yes
FO-718PL05	6 1/4” x 18” x 2 9/16”ID	5	Yes
FO-718PL10	6 1/4” x 18” x 2 9/16”ID	10	Yes
FO-718PL15	6 1/4” x 18” x 2 9/16”ID	15	Yes
FO-718PL25	6 1/4” x 18” x 2 9/16”ID	25	Yes
FO-718PL50	6 1/4” x 18” x 2 9/16”ID	50	Yes

For filters details,just contact us at any time.
