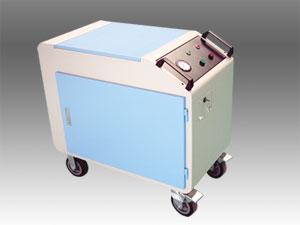

Turbine Oil Dehydration and Degassing Machine Vacuum Oil Purification System

1、 Equipment performance and usage introduction:

The TYA series vacuum oil filter uses pure physical purification methods to quickly demulsify emulsified hydraulic oil, turbine oil, mechanical oil and other lubricating oils without affecting the composition and performance of the oil. It removes harmful components such as water (including dissolved water and free water), impurities (particle impurities and mechanical mineral impurities), and gases (acetylene, hydrogen, methane, etc.) from the oil, thereby reducing the acid value of the oil and improving its lubrication and cooling performance; And effectively ensure the normal operation of oil equipment, extend the service life of oil equipment, and avoid accidents.

The TYA series vacuum oil filter is widely used for rapid and deep online purification treatment of hydraulic oil, turbine oil, mechanical oil, and other oil liquids in various industries such as power plants, steel, metallurgy, petroleum, machinery, and chemical industry.

2. The working principle of the equipment:

When the equipment is in operation, the oil first enters the coarse filter through the inlet under the pressure difference between inside and outside, which is equipped with a stainless steel filter screen. When the treated oil flows out, the large particle impurities contained in the oil are intercepted; The crude filtered oil continues to undergo heat exchange heating through the heater under the pressure difference effect; After heating, the oil continues to enter the extremely low pressure vacuum separator, which uses molecular separation technology principles to perform pressure swing analysis, vacuum retention, and rapid three-dimensional evaporation of the oil, eliminating the binding force between molecules, allowing the dissolved water, dissolved gas, free water, and free gas contained in the oil to quickly break through the oil film and separate from the oil molecules and precipitate; The oil enters the vacuum separator and first forms a mist, then a film, which expands its contact area in the vacuum by hundreds of times. The moisture contained in the oil undergoes rapid vaporization under conditions of high heat, high vacuum, large surface area, and high pumping rate, and is discharged by the vacuum system; The dehydrated and degassed oil is then pumped into the fine filter through the oil discharge pump, which is made of a composite microporous filtering material that can effectively adsorb and intercept ultrafine particles and impurities in the oil; The final oil flowing out through the oil outlet is clean oil, thus completing the entire oil purification process.

The high-temperature and hot water steam discharged from the upper part of the vacuum separator is first cooled and dehumidified by the cooler, and the gas after two rounds of cooling is discharged by the vacuum pump.
