Waste tire processing equipment

Read Reviews23 Q&As Write a Review
Lefilter waste tire recycling equipment uses thermal decomposition technology to decompose macromolecules into smaller molecules when high temperature. It is 100% recycling equipment, not only a profitable business, but also helpful for imp

PARAMETER

Brand Name: Lefilter
Model Number: HJA-10
Nominal filtration rating:
Application:
Operating pressure:
Working temperature:
Replacement or not:Replacement

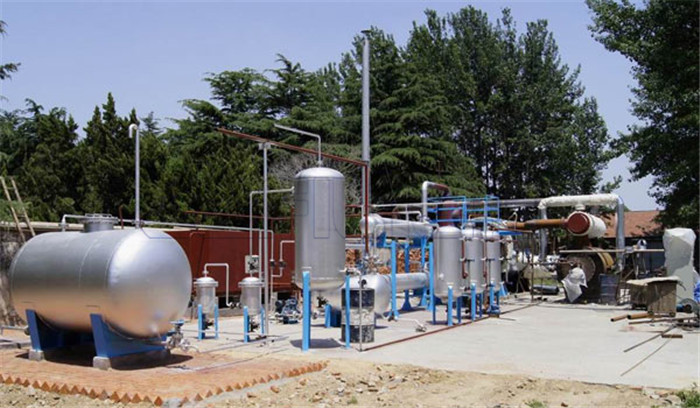

Lefilter waste tire recycling equipment uses thermal decomposition technology to decompose macromolecules into smaller molecules when high temperature.

It is 100% recycling equipment, not only a profitable business, but also helpful for improving the local environment, avoid garbage pollution.For 1T waste tire,it can produce final products which have different valuable application as below:


Final Products Yield Application
Fuel Oil 45%-55% 1. Heating material:sell to cement factory, glass factory, ceramic factory, electric power factory, steel making factory, boiler factory, etc.
2. Used for heavy oil generator for electricity generation.
3. Deep process it into diesel oil then can be used in cars,trucks, tractors, etc.
Carbon Black 30%-35% 1. Make it into pellet or briquette as heating material.
2. Make it into N220, N330, N550 or N660 which is widely used in tire making industry.
3. Make it into plastic grains then sold to plastic industry.
Steel Wire 30%-35% 1. Sell it to iron and steel factory directly.
2. Sell it to steel distributors.
Flammable Gas 8%-10% 1. Recycled into furnace to heat reactor instead of coal/wood/oil/natural gas.
2. Store it then supply the pyrolysis equipment heating,it’s recycling.




Items Contents
Input-Raw Materials Waste tire/rubber/plastic/Medical waste/municipal solid waste/waste organic glass
Final products Fuel oil, N220, N330 carbon black, steel wire, flammable gas.
Item HJA-7 HJA-8 HJA-9 HJA-10
Capacity/24h 6-7Ton/Batch 8 -9Ton/Batch 10-11Ton/Batch 12-13Ton/Batch
Oil production(T)/24h 2.7-3.2 3.6-4 4.5-5 5.4-5.8

Power 4KW 4.5KW 5.5KW 7.5KW
Rotate speed(r/min) 0.4
Heating type Direct heat
Cooling type Water-cooled
Cooling water
consumption(T/h)
4 5 6 8
Noise(dB) ≦85
Operating Intermittent
Driving mode Internal gear driving External gear driving
Reactor material Q345R/Q245R/310S+Boiler plate/Stainless steel
Structure Horizontal rotation
Host weight(T) 20 23 26 28
Reactor size(mm) Ø2200*5100 Ø2200*6000 Ø2600*6600 Ø2800*6600
Space needed 200-300 square meters (Width:10m, Length:20m-30m)
Combustion value 35-50m3
Note We supply customized plant,we need some basic information as below:

What kind of raw material to recycle?
Tires for car, truck, motorbike...
Plastic of PVC,PE, PP,PS,ABS,bags,acrylic, rubber, medical waste, oil sludge industrial waste material...
What capacity do you need to recycle per day? (Ton)
What fuel do you use?
Coal,gas,wood...

Items Contents
Input-Raw Materials Waste tire/rubber/plastic/Medical waste/municipal solid waste/waste organic glass
Final products Fuel oil, N220, N330 carbon black, steel wire, flammable gas.
Item HJA-7 HJA-8 HJA-9 HJA-10
Capacity/24h 6-7Ton/Batch 8 -9Ton/Batch 10-11Ton/Batch 12-13Ton/Batch
Oil production(T)/24h 2.7-3.2 3.6-4 4.5-5 5.4-5.8

Power 4KW 4.5KW 5.5KW 7.5KW
Rotate speed(r/min) 0.4
Heating type Direct heat
Cooling type Water-cooled
Cooling water
consumption(T/h)
4 5 6 8
Noise(dB) ≦85
Operating Intermittent
Driving mode Internal gear driving External gear driving
Reactor material Q345R/Q245R/310S+Boiler plate/Stainless steel
Structure Horizontal rotation
Host weight(T) 20 23 26 28
Reactor size(mm) Ø2200*5100 Ø2200*6000 Ø2600*6600 Ø2800*6600
Space needed 200-300 square meters (Width:10m, Length:20m-30m)
Combustion value 35-50m3
Note We supply customized plant,we need some basic information as below:

What kind of raw material to recycle?
Tires for car, truck, motorbike...
Plastic of PVC,PE, PP,PS,ABS,bags,acrylic, rubber, medical waste, oil sludge industrial waste material...
What capacity do you need to recycle per day? (Ton)
What fuel do you use?
Coal,gas,wood...
