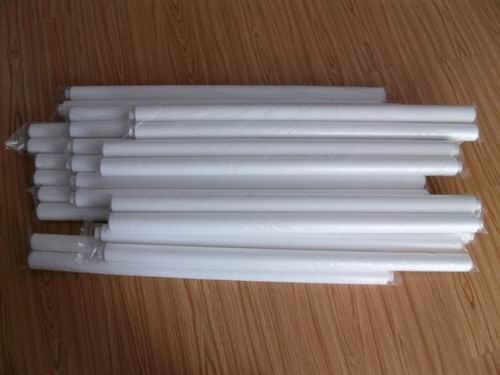

PP water filter element 10

PP water filter element 10"*2"*0.1um

Read 0 Reviews23 Q&As Write a Review

PARAMETER

Brand Name:
Model Number:
Nominal filtration rating:
Application:
Operating pressure:
Working temperature:
Replacement or not:Replacement

PP water filter element 10"*2"*0.1um

 Description of product

   PP water filter cartridge is made of melted 100???nbsp;food grade polypropylene.Comparing with PP string filter cartridge ,it has better chemical durability and longer service life,Caliber.63mm,254mm
  Specifications

Fiber

100%PP

Substrates

100%PP

Square Weight

450g/m2

Thickness

1.7mm

Density

0.26g/cm3

Ventilation Volume

140L/dm2.min

Breaking Strength-lengthwise

1200 N/5cm

Breaking Strength-breadth wise

1200 N/5cm

elongation@200N/5cm-lengthwise

<5%

elongation@200N/5cm-breadth wise

<5%

Shrink @150degC,90min

1%

Bursting strength

>300 N/cm2

Continuous temperature

90°C

Instantaneous temperature

100°C

Reprocessing

Heat-setting Firing pressure

Standard technical data

        Size

Component material

    Property

OD

2.48"4.53"

(As your request)

Shell cover

PP

Filtration

1um,3um,

10um,25um,50um,75um,

100um,

150um

ID

1.10"1.18"

Pole

PP

Temperature

82???/font>

Length

9075"9.87"10"20"30"40"

50"60"

Spacer/

seal ring

Silastic,EPR,NBR, Fluororubber

Max

2.0bar 21???/font>

 Filter medium

PP
