1 Micron Big Flow Water Filter Cartridge Replacement for Sea

1 Micron Big Flow Water Filter Cartridge Replacement for Sea

Read 0 Reviews23 Q&As Write a Review
1 Micron Big Flow Water Filter Cartridge Replacement for Sea Water Equipment Introduction: It is designed for a variety of container which can hold 1 to 37 filter elements. It can meet a variety of flow rate demands and the hardware of whic

PARAMETER

Brand Name: LEFILTER
Model Number:
Nominal filtration rating:
Application:
Operating pressure:
Working temperature:
Replacement or not:Replacement




Introduction:

It is designed for a variety of container which can hold 1 to 37 filter elements. It can meet a variety of flow rate demands and the hardware of which has a price competitive advantage. The large diameter of filter design increases the filtration area and can greatly reduce the amount of filter elements and the shell size.

Application fields:

  1. RO cartridge filtration and seawater desalination pretreatment

  2. Filtration of condensed water in power plants

  3. Filtration of bulk drug, solvent and water in bio-pharmacy industry

  4. Filtration of bottled water, liquid glucose, edible oil, juice, soft drink and milk

  5. Painting, petrochemical industry

  6. Micro-electronics, film, fiber, resin


Product features:

  1. High pollution assimilative capacity can prolong the service life and reduce the cost.

  2. Reduce the amount of replacement filter elements and decrease labor cost.

  3. The design of seal interface can reduce the risk of bypass flows and increase the filtration efficiency.

  4. Easier installment and lower labor cost.

  5. Wide chemical applicability can be applied to a variety of fields.


Technical specifications:

  1. Parts materials:

Filter material: pleated fiberglass, pleated deep polypropylene (PP)
Supporting/diversion layer: polypropylene (PP)
End caps: reinforced polypropylene with fiberglass
Sealing material: EPR, PTFE fluororubber

  1. Performance of filter element:

Filtering accuracy: 1micron, 3micron, 5micron, 10micron, 20micron, 50micron, 70micron
Highest operating temperature: 80℃
Maximum pressure drop: 3.4bar, 20℃
Recommended pressure drop for filter replacement: 2.4bar, 20℃
The maximum water-carrying capacity: 1300L/min

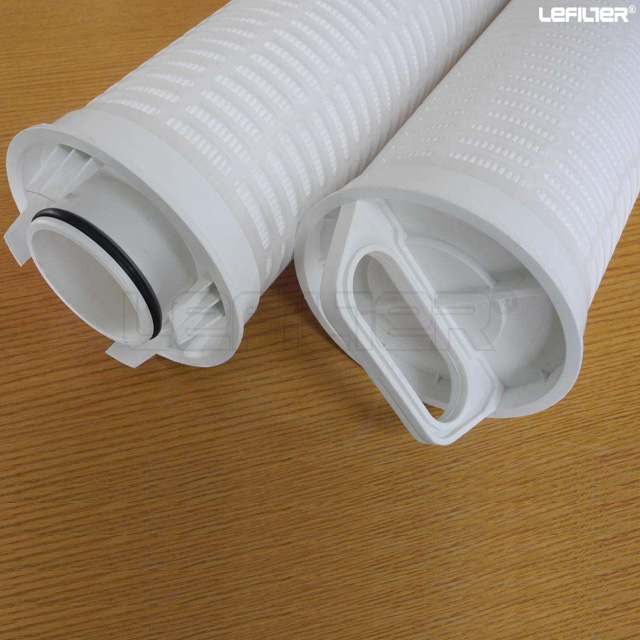

Product show:
