Check Vavle Magnetic Suction Filter CFF-510*100

Read Reviews23 Q&As Write a Review
WITH CHECK VALVE MAGNETIC SUCTION FILTER SERIES INTRODUTION The series filter can be installed on the top or at the side of the tank. There is check vavle inside the filter. During maintenance, filter element is withdrawn for washing, the c

PARAMETER

Brand Name: Lefilter
Model Number: CFF-510X100
Nominal filtration rating:80-180um
Application:Hydraulic system,suction filter
Operating pressure:0.01MPa
Working temperature: 5-80℃
Replacement or not:Replacement

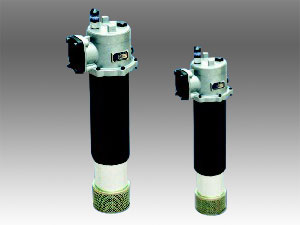

CHECK VALVE MAGNETIC SUCTION FILTER

INTRODUTION

The CFF series suction filter can be installed on the top or at the side of the tank. There is check vavle inside the filter.
During maintenance, filter element is withdrawn for washing, the check vavle will closeautomatically to
stop oil flowing out from the tank.
A vacuum indicator in the filter will signal when the pressure drop across the element reaches 0.018Mpa
showing that the filter should be cleanes. If no maintenance is done, as the pressure drop rises to 0.02Mpa,
the by-pass vavle in this filter will open to allow oil flowing into pump directly.


Technical Data:


CFFA With Check Vavle Magnetic Suction Filter Series 80~180μ
CFF With Check Vavle Magnetic Suction Filter Series 80~180μ
ZL12-122 With Check Vavle Magnetic Suction Filter Series

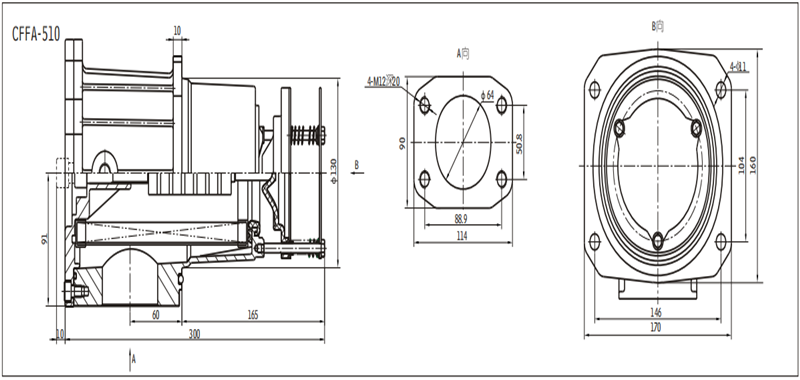

CFFA-250×
CFF-510×
ZL12-122×
CFFA-510×
CFF-515×
ZL12B-122×
CFFA-515×
CFF-520×
ZL12C-122×
CFFA-520×
CFFFilter Element
80~180μ
ZL12-122 Filter Element
CFFA Filter Element
80~180μ
FX-510×
ZL12X-122×
CFFAX-250×
FX-515×
ZL12BX-122×
CFFAX-510×
FX-520

CFFAX-515


CFFAX-520×



Sizes:
