PECO facet Coalescer Cartridges for aviation kerosene

PECO facet Coalescer Cartridges for aviation kerosene

Read 0 Reviews23 Q&As Write a Review
INTRODUCTION: Facet CAA Series 5 coalescer cartridges offer the finest performance available. This standard line of high flow coalescer cartridges removes ultra-fine solids and enhances separation of water from jet fuel. The Facet coalescer

PARAMETER

Brand Name: PECO FACET
Model Number:
Nominal filtration rating:
Application:
Operating pressure:
Working temperature:
Replacement or not:Replacement


INTRODUCTION:

Facet CAA Series 5 coalescer cartridges offer the finest performance available. This standard line of high flow coalescer cartridges removes ultra-fine solids and enhances separation of water from jet fuel.

The Facet coalescer separator housings equipped with CAA Series 5 coalescer and companion separator cartridges have been tested and fully qualified to meet the performance requirements to EI 1581, Fifth Edition, Category C (Category C replaces the previous class A, B, and C of API 1581 3
rd Edition.)

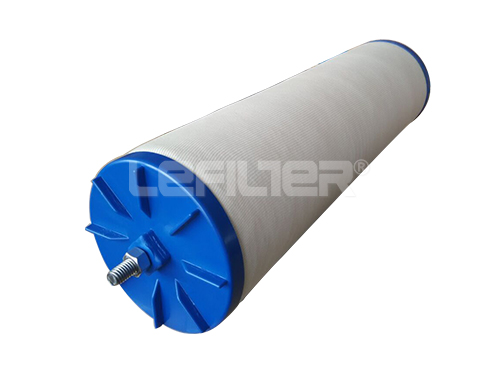

Built for balanced fluid flow-thru and structural strength, each CAA Series 5 coalescer cartridge is a single-piece construction of various combined media, precisely arranged in many layers and pleats, wrapped around a coated, perforated metal center tube—all encased in an outer sock material. All are 6” OD (152 mm) by 3
12" ID (89 mm) and available in standard interchangeable nominal lengths from 1114" (290 mm) to 5714" (1450 mm).

The CAA Series 5 coalescer cartridges are available in two cartridge mounting styles: self-centering rod mount and screw base. The rod mount style has treated metal end caps, while the screw base ends are injection molded, glass-filled nylon. This screw base material offers superior strength and ease of maintenance—uniform threads, no shrinkage, no galling and no gasket to recover.

A permanently affixed Buna-N gasket seals against the V-type knife edge mounting adaptor to provide a positive seal. It will not separate from the cartridge during installation or change out.


MATERIALS:
• All metal components are treated against corrosion
• Screw base ends are injection molded, glass-filled nylon with locked-in gaskets
• Buna-N gaskets—other materials are available on request


FEATURES:
• Tested and qualified to the Fifth Edition of EI 1581, Category C
• Multi-layered media for increased solids holding capacity
• Ultra-fine solids removal
• Maximum water coalescence
• Balanced cartridge flow characteristics
• Recommended maximum operating temperature: 240°F (115
oC)
• Withstands in excess of 75 psi differential pressure
• pH range from 5 to 9
• Screw base or open-end configuration


APPLICATION:
This standard line of high flow coalescer cartridges is mainly for aviation kerosene to removes ultra-fine solids and enhances separation of water from jet fuel.
