GLYC two stage high viscosity lubricating oil purifier equip

I. OIl Filter Description
 This oil filter machine has 3-classes filtration. Thermal relay protection to prevent motor damage caused by motor overload.Suction port coarse filter to protect the pump and extend the life of the main filter.
After the pump has two fine filter, so the oil quickly reach high cleanliness.Fine filter according to the different needs of users, choose a different precision, achieve the desired results.

Applications

● Filtration of high viscosity oil
● The filling of high viscosity oil
● The bypass filtration when high viscosity oil system at work

Product Performance

Model	LYC-25B-*/**	LYC-40B-*/**	LYC-50B-*/**			LYC-63B-*/**		LYC-100B-*/**	LYC-160B-*/**
Rated flow L/min	25	40	50			63		100	160
Temperature  °C	5-100
Recommended viscosity CSt	10-760
Rated pressure MPa	1.0
The original pressure loss MPa	≤0.2
First coarse filtration accuracy μm	100
Secondary precision filtration accuracy μm	10、20、30
Third precision filtration accuracy μm	3、5、10、20、40
Voltage V	Three-phase AC380V   Two-phase AC220V
Motor Power kw	1.1	1.2	3.0				3.0	4.0		5.5
Weight kg	160	232	240				265	400		540
Dimensions mm	1080x600x980	1200x600x980	1500x740x1020				1500x740x1020	1500x740x1020		1500x740x1020

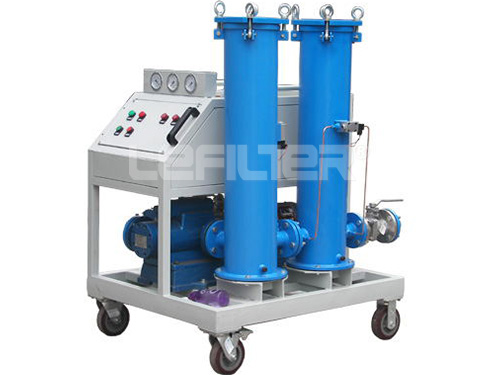

GLYC Oil purifiers picture:
