FCM60/100 Series Equivalent Oil Purifier

FCM60/100 Series Equivalent Oil Purifier

Read 0 Reviews23 Q&As Write a Review
ApplicationsHydraulicandlubricationsystemsindifferentindustries(forexample,machinetools,plasticinjec

PARAMETER

Brand Name: Lefilter
Model Number:
Nominal filtration rating:
Application:
Operating pressure:
Working temperature: -10~80
Replacement or not:Replacement

FCM60/100 Series Equivalent Oil Purifier

FCM60/100 Oil Purifier Applications

FCM60/100 Hydraulic and lubrication systems in different industries (for example,machine tools, plastic injection moulding machines,

paper mills,construction machinery, steel industry, marine & offshore, mobile industry)

FCM60/100 Oil Purifier Advantages

Prevents costly component damage
and system failures
Reliable and convenient operation
Increased oil service life
Reduction in Life Cycle Cost LCC

FCM60/100 Oil Purifier Technical specifications



Vane pump version

Gear pump version

Max. flow rate

FCM 60 = 60 l/min
FCM 100 = 100 l/min

Voltage

230V 50Hz,380-420V 50Hz,440V-480V 60Hz

Micron

3-40μm

Operating pressure

pmax = 6 bar

pmax = 10 bar

Viscosity range

15 ... 400 mm²/s

15 ... 1000 mm²/s

Permitted operating fluid

Mineral oil (DIN 51424)

Fluid temperature

-10 ... 80 °C

Ambient temperature

-10 ... 40 °C

Seals, gaskets

NBR

Protection class

IP 55

Connections/Length of hoses
Suction hose
Pressure hose

NW 38 (1 ½) / 2.5 m
NW 25 (M 36x2) / 4 m

Weight

135 kg (FCM 60)

145 kg (FCM 100)

Sizes

705x610x1245mm



FCM60/100 Oil Purifier Model code

FCM  100  L  N  3B03  C/  S5D5-V

FCM:Filtration unit
FluidCleaner Mobil

100:Flow rate
060 = 60 l/min
100 = 100 l/min

L:Versions
L = vane pump without change-over(standard)
F = vane pump with change-over
K = gear pump without change-over
G =gear pump with change-over

N:Connection voltage
M*= 230V / 50 Hz (1 Ph + PE)
N = 400V / 50 Hz (3 Ph + N + PE)
S = 500V / 50 Hz (3 Ph + PE)
X = other voltage

3B03:Filter design
2 = filter size 1300
3 = filter size 2600
   See next page

C/:Clogging indicator
B = visual differential pressure indicator (Standard)
C = special model - differential pressure indicator eletrical (VM2C.) with
automatic motor cut-out when filter is contaminated.

S5D5-V:Supplementary details
No details = standard
S5 = suction hose 5 m with lance
D5 = pressure hose 5 m with lance
V = FPM (Viton) seal
SK = suction hose with threaded connection
DK= pressure hose with threaded connection

*= for type FCM 60(1.5 kW) only

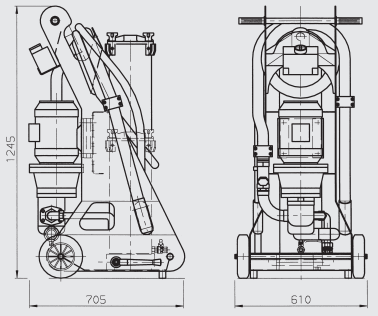

FCM60/100 Oil Purifier Dimensions





FCM60/100 Oil Purifier Hydraulic circuit diagram




FCM60/100 Oil Purifier Replacement elements:

Filter size    Filtration rating           Element type                 Part No.

2               3 µm           1300 R 003 BN4HC-/KB (-V-KB)     1263059 (1263760)

2               5 µm           1300 R 005 BN4HC-/KB (-V-KB)     1263060 (1263761)

2               10 µm          1300 R 010 BN4HC-/KB (-V-KB)     1263061 (1263762)

2               20 µm          1300 R 020 BN4HC-/KB (-V-KB)     1263062 (1263763)

2               40 µm          1300 R 040 AM/-KB                1267699

2               10 µm          1300 R 010 BN4AM/-KB (-V-KB)     1270010 (1276060)

2               3 µm           1300 R 003 BN/AM/-KB (-V-KB)      1267991 (1271839)

3               3 µm           2600 R 003 BN4HC/-KB (-V-KB)      1263071 (1263784)

3               5 µm           2600 R 005 BN4HC/-KB (-V-KB)      1263072 (1263785)

3               10 µm          2600 R 010 BN4HC/-KB (-V-KB)      1263073 (1263786)

3               20 µm          2600 R 020 BN4HC/-KB (-V-KB)      1263074 (1263787)

3               40 µm          2600 R 040 AM/-KB                 306899

3               3 µm           2600 R 003 BN/AM/-KB (-V-KB)       1268232 (1275329)

3               10 µm          2600 R 010 BN/AM/-KB              1276840
