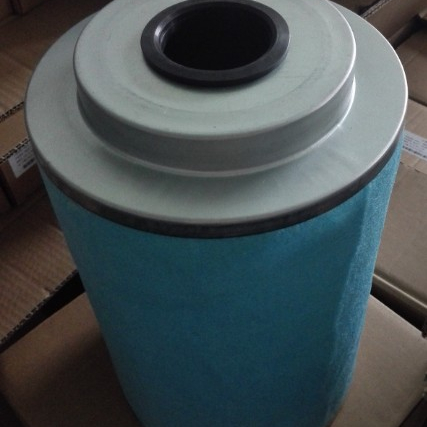

screw compressor air oil separator

The material of Oil Mist Separator filter is made of superfine glass fiber of HV and Lydall companies in America. Oil-gas mist in the compressed air can be completely filtered through the filter element of the Oil Mist Separator.


·Oil content of compressed air: 3~6PPm     Oil-gas granule of compressed air: ≤ 0.1μm

·Service life of the filter element: 3500~5200h (greatly affected by the quality of the lubricating oil and the working environment)

·Initial PSID (Pounds per Square Inch Differential): ≤0.02Mpa

·Lubricating oil should be controlled at prescribed position, which is commonly at 1/2~2/3 of theOil Mist Separator.

·Secondary oil return pipe and one way valve should be kept unimpeded and in the prescribed position.

·Exhaust steam pressure should be adjusted to the prescribed value.

·Make sure the air compressor works at proper temperature and the pressure valve is in good condition.



Gas-oil dissociation components applicable to Atlas screw air compressor:


Model	OriginalP/N	External diameter   (mm)	Height(mm)	Goods No. of us
GA11/15/18/22	1612386900	220	250	LF30313250
GA11/15/18/22	1613750200	240	175	LF30313175
GA30/37/45	1613243300	300	300	LF30317300
GA37+	1622314000	300	250	LF30717250
GA90/110	1614905400	596	280	LF30335280

High quality products
