Introduction

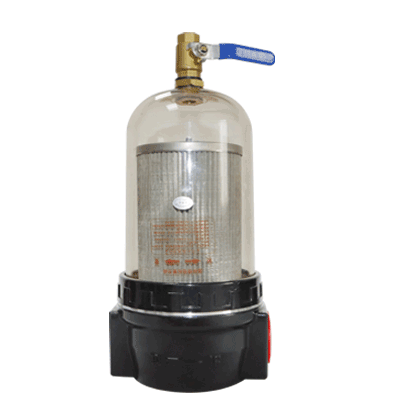

Vehicle water filter for sanitation industry lefilter

Vehicle water filter for sanitation industry

The vehicle water filter for the environmental sanitation industry is a water filter independently developed and produced by Xinxiang lifeiter filter Co., Ltd., which is applied to the filters of environmental sanitation vehicles, sprinkler vehicles, high-pressure cleaning vehicles and road sweepers; It is a supporting product of high-pressure sprinkler to protect high-pressure water pump; At the same time, it is applicable to all kinds of water systems that require high water cleanliness. It can effectively prevent sundries and scale in the water, so as to protect the cleanness and safety of the system. It is applicable to Fujian Longma, Zoomlion, Hengrun high tech, Yutong heavy industry, Jianghuai Weiling, XCMG group, chengli special automobile, Dongfeng Group, Suizhou Dongzheng special automobile, aerospace Chenguang, Hubei Heli, Yishan heavy industry, Zhongtong automobile, Tonghui automobile, chufei and other clean vehicles.

Application sanitation vehicle, sprinkler, high-pressure cleaning vehicle, road sweeper, fog gun truck, etc., supporting more vehicles in the sanitation industry.
Filter medium impurities, sundries, sediments and suspended solids in water
Email overseas@lefilter.com

Working principle

The filter screen is made of aluminum alloy, which is anti-corrosion and rust proof. Its function is to filter the slag in the water or oil circuit and protect the gear of the water pump or oil pump from being damaged by solid debris. The cover at one end of the three-way filter screen can be removed to facilitate the replacement of the filter screen.

Advantages

  • Vehicle water filter for sanitation industry Advantages1

    Novel structure: The utility model has the advantages of novel structure, small volume, simple and flexible operation.

    Structure

    Structure composition:

    It is mainly composed of filter shell, filter element, water inlet and outlet interface, valve and other main components.

  • Vehicle water filter for sanitation industry Advantages2

    The filter screen is made of aluminum alloy, which is anti-corrosion and rust proof.

    Material

    Filter material:

    The filter screen is made of aluminum alloy, which is anti-corrosion and rust proof. Its function is to filter the slag in the water or oil circuit and protect the gear of the water pump or oil pump from being damaged by solid debris.

  • Vehicle water filter for sanitation industry Advantages3

    Large flow, no blockage, high work efficiency.

    Flow

    Large flow:

    Effectively filter out impurities, no blockage, large water flow, and improve work efficiency.

  • Vehicle water filter for sanitation industry Advantages4

    It is applied to sanitation vehicles, sprinkler vehicles, cleaning and washing vehicles, road sweepers, fog gun trucks, etc.,

    Application

    Widely used:

    It can be used in various brands.

Technical parameter

Lefilter mode Material Overall dimension and connection mode Design flow Working pressure Filter media
Filter seat Lock ring Filter element end cover Strainer Filter bowl Drain valve assembly Drain valve Seal ring Overall dimension(mm) Connection mode Installation method
SL-100/SLQ-58 Die cast aluminum parts ADC12 Die cast aluminum parts ADC12 High quality POM material High quality 304 stainless steel High strength PC polycarbonate Brass 62 DN8 PN16 High quality nitrile rubber NBR 115*113*270 Pipe thread, inlet G1 thread, outlet G1/2 thread 2-m8 threaded holes with depth of 20 on both sides are installed on the side, and the hole spacing is 30mm wide 100L/min 0.8Mpa Water
SL-400/SLQ-59 High quality 304 stainless steel DN15 PN16 165*165*445 The diameter of flange inlet and outlet is DN50, flanges at both ends are equipped with 4-m8 deep 20 screws for fastening connection, and the screw hole spacing is 52x52mm Top 4-m12 25 deep screw hole hoisting, with a distance between holes of 78x7 8mm 400L/min

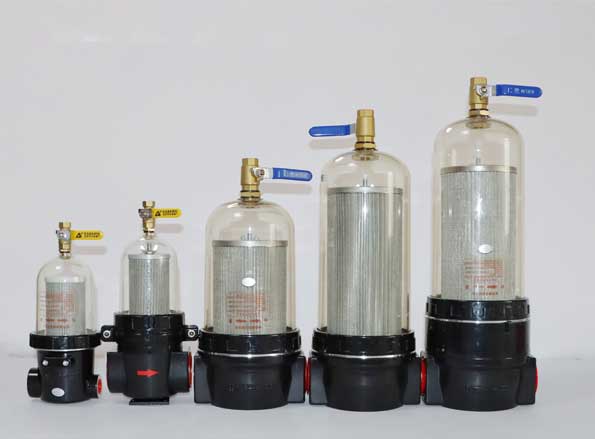

Pictures

Cases

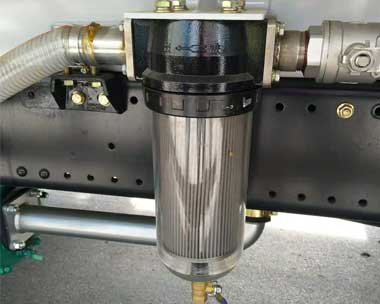

  • Sanitation sprinkler customer site
    Sanitation sprinkler customer site

    Product: vehicle water filter for sanitation industryModel: SLQ-58

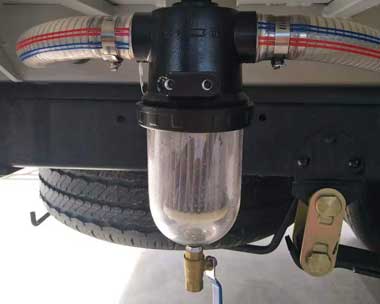

  • Use site of fog gun truck
    Use site of fog gun truck

    Product: vehicle water filter for sanitation industryModel:SL-100

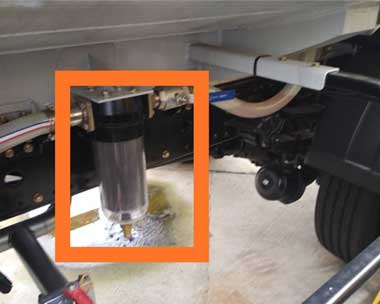

  • Use site of washing and sweeping vehicle
    Use site of washing and sweeping vehicle

    Product: vehicle water filter for sanitation industryModel:SLQ-59

CUSTOMIZATION SERVICE PROCESS

Provide customization services according to different working conditions
