Production Introduction

RF series direct return oil filter lefilter

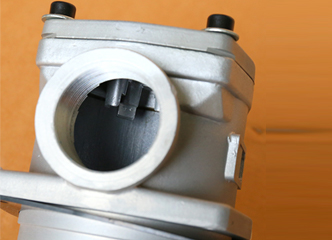

RF series direct return oil filter

The filter is used for fine filtration of the return oil of the hydraulic system to filter out metal particles produced by the wear of components in the hydraulic system and rubber impurities of seals and other pollutants,so as to keep the oil flowing back to the oil tank clean.

Application widely used in hydraulic systems such as heavy machinery, mining machinery and metallurgical machinery.
Filter medium water and ethylene glycol in hydraulic oil
Email overseas@lefilter.com

Performance and Characteristics

1、The filter can be installed directly on the cover of the oil tank,or by pipe.

2、It is equipped with filter element pollution blocking transmitter and by-pass valve,which can improve the reliability of hydraulic system.when the filter element is blocked by pollutants or the oil inlet pressure is 0.35Mpa due to low system liquid temperature,flow pulsation and other factors,the transmitter will send a signal indicating that the filter element should be replaced or the temperature should be increased in time.If the machine cannot be shut down immediately to deal with these faults at this time,the by-pass valve on the filter element will open automatically (the opening pressure difference is 0.4MPa).

3、The filter element is made of chemical fiber,which has the advantages of high filtration accuracy,large oil passing capacity,small original pressure loss,high pollutant carrying capacity and so on.The filtration accuracy is calibrated by absolute filtration accuracy,the filtration ratioβ3,5,10,20≥200, filtration efficiency N≥99.5%, in line with ISO standards.

Technical Parameters

model nominal flow rate
(L/min)
filtration accuracy
(μm)
drift diameter
(mm)
nominal pressure
(MPa)
pressure loss
(MPa)
transmitting device
(V/W)
weight
(Kg)
filter element model
Initial Max. (V) (A)
RF - 60 x * Y/C 60 1

3

5

10

20
20 1 W0.07 0.35 12

24

36

220
2.5

2

1.5

0.25
0.4 LH0060R* BN/HC
RF - 110 x * Y/C 110 0.9 LH0110R* BN/HC
RF - 160 x * Y/C 160 40 1.1 LH0160R* BN/HC
RF - 240 x * Y/C 240 1.8 LH0240R* BN/HC
RF - 330 x * Y/C 330 50 2.3 LH0330R* BN/HC
RF - 500 x * Y/C 500 3.2 LH0500R* BN/HC
RF - 660 x * Y/C 660 80 4.1 LH0660R* BN/HC
RF - 850 x * Y/C 850 13 LH0850R* BN/HC
RF - 950 x * Y/C 950 90 20 LH0950R* BN/HC
RF - 1300 x * Y/C 1300 100 41.5 LH1300R* BN/HC

Note:*refers to filtration accuracy.If the medium is water-glycol,nominal flow rate is 160L/min,filtration accuracy is 10μm,with CYB- I transmitter,the filter model is RF . BH-160 x 10Y,and the filter element model is LH0160R010BN/HC.

Connection Size

RF series direct return oil filter connection Size
Model Size (mm)
B1 L L1 h D1 H D d M t2 B M1 t1 m t3 a b DN
RF - 60 x * L - Y/C 90 166 92 11 Φ80 34 Φ100 Φ5.5 M27x2 16 48 M27x2 16
RF - 110 x * L - Y/C 233 159 M33x2 M33x2
RF - 160 x * L - Y/C 120 209 120 11 Φ106 40 Φ135 Φ7 M48x2 20 66 M48x2 20
RF - 240 x * L - Y/C 268 179 M48x2 M48x2
RF - 330 x * L - Y/C 152 271 138 13 Φ135 63 Φ170 Φ9 M60x2 27 85 M60x2 27
RF - 330 x * F - Y/C M60x2 M12 23 42.9 77.8 Φ50
RF - 500 x * F - Y/C 351 218
RF - 660 x * F - Y/C 196 411 243 13 Φ175 83 Φ220 Φ13.5 110 m16 22 61.9 106.4 Φ80
RF - 850 x * F - Y/C 492 324
RF - 950 x * F - Y/C 255 449 251 14 Φ208 93 Φ290 Φ17.5 135 22 69.9 120.7 Φ90
RF - 1300 x * F - Y/C 573 332 121 145 77.8 130.2 Φ100

Production Field

  • product

  • video

  • RF series direct return oil filter lefilter RF series direct return oil filter lefilter RF series direct return oil filter lefilter RF series direct return oil filter lefilter RF series direct return oil filter lefilter

Case Site

  • double druml oil filtration site
    double druml oil filtration site

    function:hydraulic oil filtrationrate of flow:1000t/h

  • pressure pipeline filtration site
    pressure pipeline filtration site

    function:hydraulic oil filtrationrate of flow:200t/h

  • machining filtration site
    machining filtration site

    function: oil filtratiionrate of flow:100t/h
