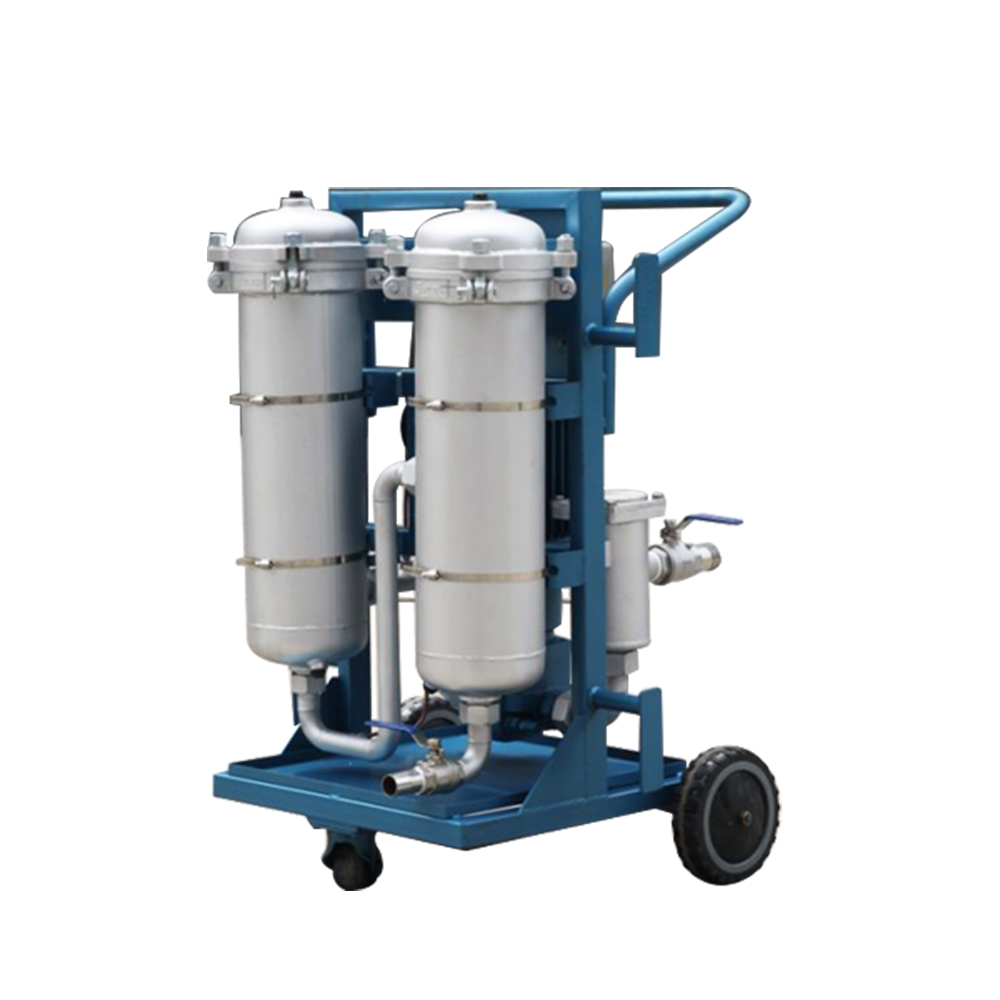

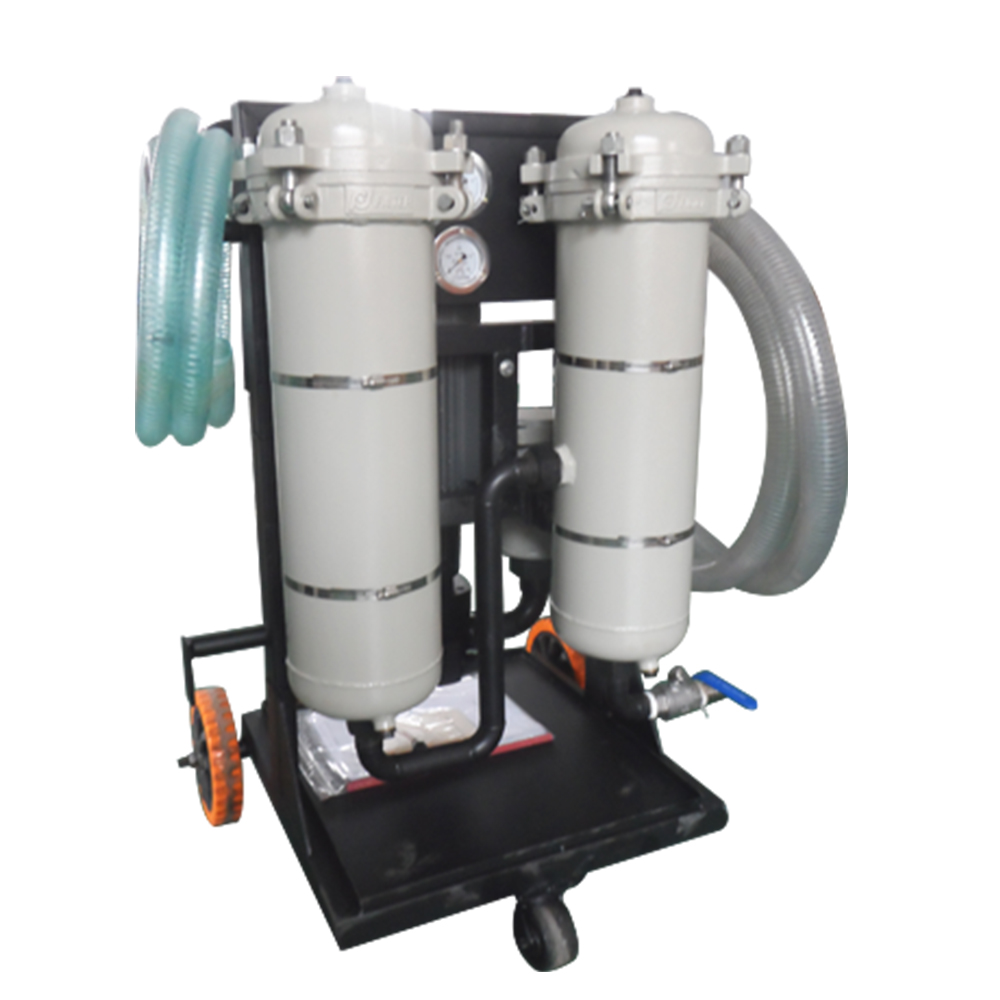

oil filter machine for Vacuum Oil,transformer oil,lube oil​

Read Reviews23 Q&As Write a Review
Product introduction: Pall filter element is a kind of hydraulic oil filter which is widely used in hydraulic system and lubrication system. It is used for filtering out the metal particles and rubber impurities cause by wearing in the oil

PARAMETER

Brand Name: Lefilter
Model Number: LYC-B
Nominal filtration rating:1~100 micron
Application:Vacuum Oil,transformer oil,lube oil​, turbine oil systems
Operating pressure:
Working temperature: 5~80℃
Replacement or not:Replacement

oil filter machine introduction:

oil filter machine is for Vacuum Oil,transformer oil,lube oil​, turbine oil systems, can adapt to the removal and filtration of most common oil products such as hydraulic oil, steam turbine oil, transformer oil, gasoline and diesel, and quickly reach the ideal precision requirements, and is convenient to move, low cost, and high precision. The oil filter is an effective oil filter device for controlling the pollution degree of the hydraulic system.



oil filter machine Applications

Filtration of hydraulic lubrication system when refueling
Hydraulic lubrication system bypass filters at work
Hydraulic lubrication system put into operation before the loop filter
Hydraulic oil pump lubrication system does not filter out the pump
through the device itself
(Note:The machine isn’t suitable for fuel and other flammable media)



oil filter machine Features:

The oil filter consists of a motor-driven gear pump dedicated, low noise,strong self-absorption capacity, smooth running characteristics.
High-pressure pipe with overflow protection devices, can effectively protect the safety of the Hydraulic system.
Thermal relay protection to prevent motor damage caused by motor overload.
Suction port coarse filter to protect the pump and extend the life of the main filter.
After the pump has two fine filter, so the oil quickly reach high cleanliness.
Fine filter according to the different needs of users, choose a different precision, achieve the desired results.
Oil filter housing with quick open structure, without any tools will be able to quickly open the cover quickly, replace the filter. Equipped with a pressure gauge on the panel, while working ontinuously indicate the degree of contamination and thehealth system filter.


oil filter cart Structure:






LYC-B





Quality assurance:

ISO 2941------Collapse & Burst Resistant

ISO 2942------Fabrication & Integrity Test

ISO 2943------Material Compatibility with Fluids

ISO 3724------Flow Fatigue Characteristics

ISO 3968------Pressure Drop vs. Flow Rate

ISO 16889------Multi-pass Performance Testing
