Oil filter trolley LUCB-100 oil filter pushcart

Read Reviews23 Q&As Write a Review
Product introduction: 1.This kind of oil filter machine is special because it can carry a oil drum. If you need, you can push the oil filter machine with the oil drum everywhere. It is very convenient. 2.The machine is equipped with two sta

PARAMETER

Brand Name: Lefilter
Model Number: LUCB-100
Nominal filtration rating:First stage: 100um; Second stage: 3,5,10,20,30um
Application:Hydraulic system & lubrication system & other industrial oil filtration
Operating pressure:0.6Mpa
Working temperature: 5-80 degree
Replacement or not:Replacement

Product introduction:

1.This kind of oil filter trolley is special because it can carry a oil drum. If you need, you can push the oil filter trolley
    with the oil drum everywhere. It is very convenient.

2.The oil filter trolley is equipped with two stages of filters, the first stage filter is a coarse filter which can filter the original oil to
   protect the oil pump, after the first stage filtration, the second stage filter is a fine filter which can filter the oil effectively
   to get the superfine oil.

3.The oil filter trolley is widely used in hydraulic and lubrication systems in a variety of industries.

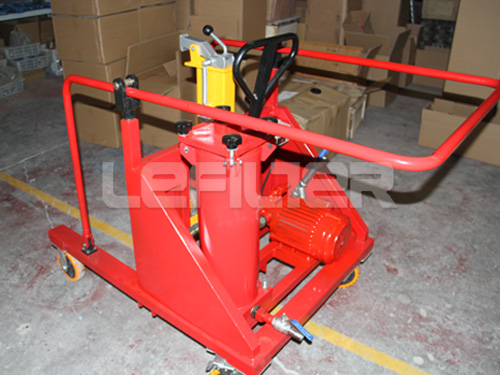

Pricture show:

oil filter trolley

oil filter cart

oil filter machine

Product features:

1.Convenient offline filtration

2.Simple to operate

3.Greater system availability

4.Reduction in Life Cycle Cost LCC

5.Simultaneous monitoring of the particle contamination

Technical data:

1.Model: LUCB-100

2.Flow rate: 100 L/min

3.Operating pressure: 0.6 Mpa

4.Viscosity range: 10-160 CSt

5.Initial pressure loss: less than 0.02 Mpa

6.Fluid temperature: 5-80 ℃

7.First stage filter precision: 100 um

8.Second stage filter precision: 3, 5, 10, 20, 30 um

9.Voltage: AC 380V/3phase, AC220V/2phase

10.Power: 1.5 kw

11.Weight: 110 kg

12.Size: 800*1440*1475 mm

Other models of oil filter trolley:

LUCB-16 oil filter trolley

LUCB-40 oil filter trolley



LUCB-63 oil filter trolley

Products application:

1.Thermal power and the nuclear: turbo-generator, boiler lubrication system, speed control system, bypass
   control system of the purification of the oil, water pump, fan and dust removal system purification.
2.Mechanical processing equipment: papermaking machinery, mining machinery, the injection molding mac-
   hine and large precision machinery lubrication system and compressed air purification.
3.Railway internal combustion engines and generators: lubricating oil and oil filter.
4.Automobile engine and engineering machinery: internal combustion engine with air filter, oil filter, fuel filter,
   engineering machinery, the ships, the vehicles to use all kinds of hydraulic oil filter, diesel oil filter, water filter.
5.All kinds of lifting, handling homework: lifting, loading and other construction machinery to fire, maintenance,
   handling special vehicle, ship's cargo crane, anchor machine, etc.
