Product introduction:
1.Leemin CFF Tank Mounted Magnetic Suction Oil Filter carries by-hand sealing valve which should
be closed when exchanging element and the oil won't flow out.
2.The filter should be installed under the oil surface. The filter has blocked indicator which will make signals
when the element is blocked and the vacuum index reaches 0.018Mpa, then the element will be changed
in time so as to avoid the breakdown.

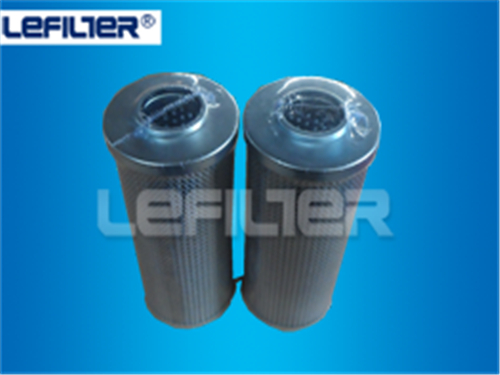

Picture show:
Product features:
1. Dimension: 71*177mm
2. Pressure: 1.0Mpa, 2.0Mpa, 16.0Mpa, 21.0Mpa
3. Application field: hydraulic system, lubrication system
4. O-Ring: NBR, VITON
Quality assurance:
ISO 2941------Collapse & Burst Resistant
ISO 2942------Fabrication & Integrity Test
ISO 2943------Material Compatibility with Fluids
ISO 3724------Flow Fatigue Characteristics
ISO 3968------Pressure Drop vs. Flow Rate
ISO 16889------Multi-pass Performance Testing
