KHB3K Two 3-way ball valve

Read Reviews23 Q&As Write a Review
1.Filtering and high precision 2.Service life is long 3.Obtained ISO,GMP,3A,IDF,DIN Quality System Certificated

PARAMETER

Brand Name:
Model Number: hc9600fkp13h
Nominal filtration rating:
Application:
Operating pressure:
Working temperature:
Replacement or not:Replacement

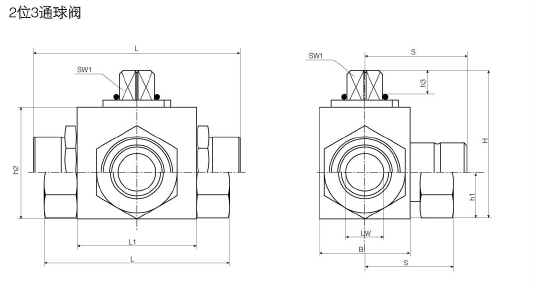

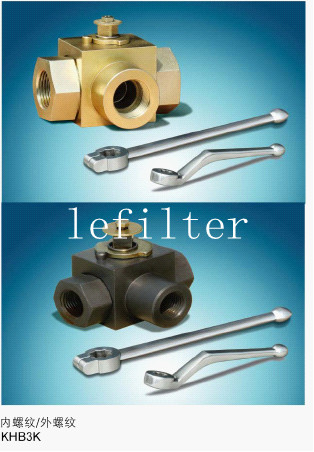

Two 3-way ball valve
  KHB3K


1. Advantages

Pad limited by controlling the directions on the handle mandrel slot observe switch position by the stopper pin and limit switch position, no leaks, no need to manually re-tune the seals using the principle of the float seal, sealed on both sides, full flow undamped flow of the medium through-flow to facilitate easy operation.
Surface phosphide or yellow zinc-plated, stainless steel ball valve.
2.Function principle
Rotation control spindle so that the switch the ball from the start position to the closed position, the system pressure of the sphere toward the non-pressure side of the sealed bowl does not leak a cutting stream.
3.Application
The two 3-way ball valve for allowing the flow in the hydraulic circuit of the commutation. Applications are:
1)Machine tool
2)System Flow
3)Construction Machinery
4)Agricultural Machinery
4.Hydraulic parameters
1)Working pressure
500bar to DN25
2)Working medium
Applies to mineral oils, lubricants and other.
3)Working medium temperature
-10 ℃ to +80 ℃
