SAE Spiral flanged ball valve

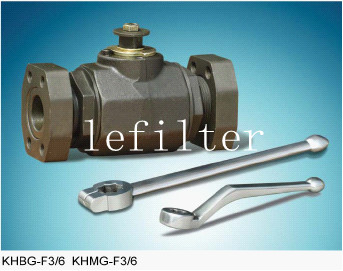

KHBG-F3/6
1.Advantages
Pad limited by controlling the directions on the handle mandrel slot observe switch position by the stopper pin and limit switch position, no leaks, no need to manually re-tune the seals using the principle of the float seal, sealed on both sides, full flow undamped flow of the medium through-flow to facilitate easy operation. SAE threaded flange can be rotated. Phosphating

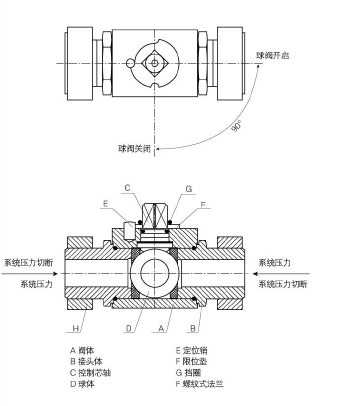

2.Function principle
Rotation control spindle so that the switch the ball from the start position to the closed position, the system pressure of the sphere toward the non-pressure side of the sealed bowl does not leak a cutting stream.
3.Application
High pressure ball valve KHBG-F3 / 6 used in the truncated stream hydraulic circuit applications:
1)Machine tool
2)System Flow
3)Marine Equipment
4.Hydraulic parameters
1)Working pressure
PN210bar to PN400bar
2)Working medium
Applies to mineral oils, lubricants and other.
3)Working medium temperature
-10 ℃ to +80 ℃
