Brand Name: Lefilter
Model Number: hc9600fkp13h
Nominal filtration rating:First stage: 100um; Second stage: 3,5,10,20,30um
Application:Hydraulic system & lubrication system & other industrial oil filtration
Operating pressure:0.6Mpa
Working temperature: 5-80 degree
Replacement or not:Replacement

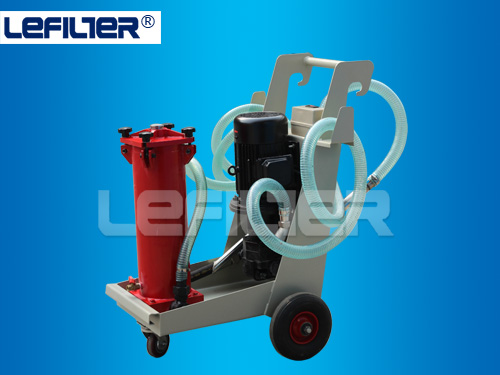

1.This kind of oil filter machine is a equivalent to the HYDAC OFU oil filter machine.
2.The machine is equipped with two stages of filters, the first stage filter is a coarse filter which can filter the original oil to
protect the oil pump, after the first stage filtration, the second stage filter is a fine filter which can filter the oil effectively
to get the superfine oil.
3.It is widely used in hydraulic and lubrication systems in a variety of industries.
1.Convenient offline filtration
2.Simple to operate
3.Greater system availability
4.Reduction in Life Cycle Cost LCC
5.Simultaneous monitoring of the particle contamination
1.Model: LUCD-63
2.Flow rate: 63 L/min
3.Operating pressure: 0.6 Mpa
4.Viscosity range: 10-160 CSt
5.Initial pressure loss: less than 0.02 Mpa
6.Fluid temperature: 5-80 ℃
7.First stage filter precision: 100 um
8.Second stage filter precision: 3, 5, 10, 20, 30 um
9.Voltage: AC 380V/3phase, AC220V/2phase
10.Power: 1.5 kw
11.Weight: 130 kg
12.Size: 430*720*770 mm
