Double stage transformer vacuum oil purifier PFC series

Read Reviews23 Q&As Write a Review
Application: To filter the oil which is filled up in hydraulic lubrication systerm, to establish equipment periodic maintenance. The by-pass filtration for the working hydraulic lubrication systerm. the circulation filtration before hydraul

PARAMETER

Brand Name: PALL
Model Number: PFC
Nominal filtration rating:3,5,10,20,40um
Application:Purifying oil being used
Operating pressure:0.6mpa
Working temperature: 5-80℃
Replacement or not:Replacement

Product Description:

PFC series high efficiency oil purifier adopts new environmentally friendly filter elements, it can be used for a variety of liquid media’s efficient filtration of solid particles in a variety of occasions.

Pall-Ultipor III high-efficiency filter material characteristics:

1. Filter out solid pollutants quickly and efficiently (βx(c)≥1000).
2. The filter material is made of patented fiber and resin through a unique process, with a fixed pore structure, and the filter material does not fall off. The intercepted pollution particles will not be subject to "bleeding" due to pressure differentials and flow pulsations.
3. The gradient pore structure, which gradually decreases from the surface to the inside and along the flow direction, intercepts different size pollution particles in layers and realizes volumetric fouling, thereby greatly improving the service life.
4. Spiral-wound reinforced support ensures stable filter media.
5. LZ filter material adopts water-absorbing resin material.

PFC series new type oil purifier features:

Lock pressure differential alarm. Prevent false alarms during cold start.
The filter has a bypass valve to avoid system interruption.
Motor phase loss phase protection.
The acousto-optic pressure difference alarm prompts the replacement of the filter element.
Suction port strainer protects the oil pump.
The port diffuser prevents air from entering the tank.
The universal wheel makes the movement more flexible and convenient.
Increase the oil pan and tubing fixtures to reduce environmental pollution.
The oil pump has an overflow valve.

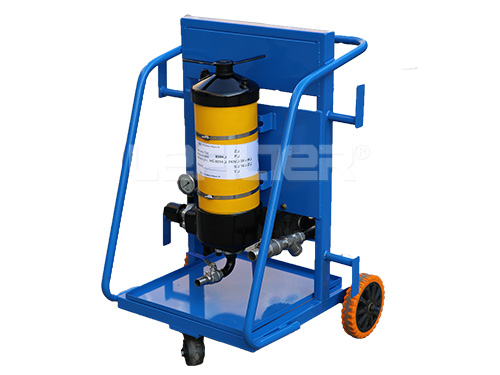

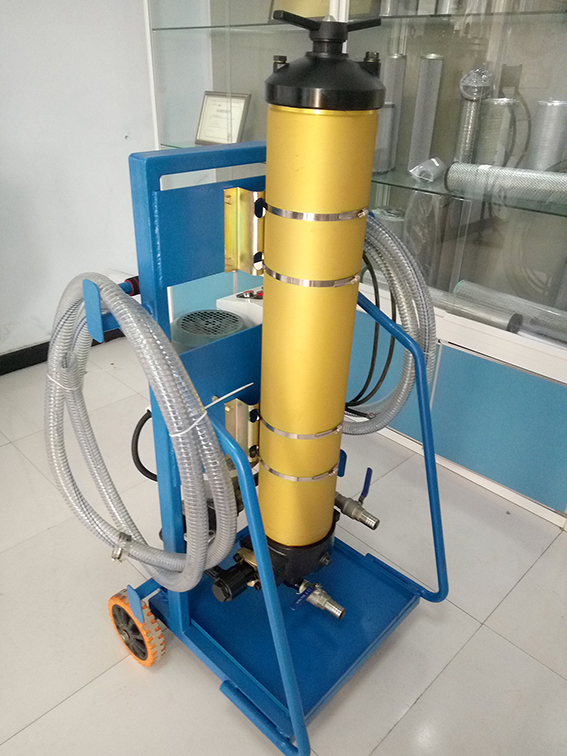

PFC Pictures:






Model PFC8924-25 PFC8314-50 PFC8314-100 PFC8314U-100 PFC8314-150 PFC8300-50-YV PFC8300-100-YV PFC8314-400
Pressure 1.0Mpa
Motor power 0.75Kw 1.5Kw 3Kw 3Kw 4Kw 2.2Kw 4Kw 15Kw
Power supply 380V X 3phase / 50Hz
Flow 25L/min 50L/min 100L/min 100L/min 150L/min 50L/min 100L/min 400L/min
Micron βx=1000 (x=2.5, 5, 7, 12, 22um) / old standardβx≥200 (x=1, 3, 6, 12, 25um)
Working temp. 0~80℃
Media Mineral oil, water glycol, phosphate anti-flammable liquid, etc.
Viscosity ≤100cSt ≤700cSt ≤260cSt
Size (mm) 600x550x860 700x650x900 800x650x1400 700x650x950 800x650x1400 700x650x900 1000x810x1610 1720x1620x1740
Weight (Kg) 65 115 160 115 165 115 192 650

Model PFC8924-25 PFC8314-50 PFC8314-100 PFC8314U-100 PFC8314-150 PFC8300-50-YV PFC8300-100-YV PFC8314-400
Pressure 1.0Mpa
Motor power 0.75Kw 1.5Kw 3Kw 3Kw 4Kw 2.2Kw 4Kw 15Kw
Power supply 380V X 3phase / 50Hz
Flow 25L/min 50L/min 100L/min 100L/min 150L/min 50L/min 100L/min 400L/min
Micron βx=1000 (x=2.5, 5, 7, 12, 22um) / old standardβx≥200 (x=1, 3, 6, 12, 25um)
Working temp. 0~80℃
Media Mineral oil, water glycol, phosphate anti-flammable liquid, etc.
Viscosity ≤100cSt ≤700cSt ≤260cSt
Size (mm) 600x550x860 700x650x900 800x650x1400 700x650x950 800x650x1400 700x650x900 1000x810x1610 1720x1620x1740
Weight (Kg) 65 115 160 115 165 115 192 650
