    oil filter cart series LUC-63 portable hydraulic oil filter

    Read Reviews23 Q&As Write a Review
    Hydraulic oil filter cart: 1. To filter the oil which is filled up in hydraulic lubrication systerm, to establish equipment periodic maintenance. 2. The by-pass filtration for the working hydraulic lubrication system. 3. The circulation fil

    PARAMETER

    Brand Name: luc
    Model Number: LUC-63
    Nominal filtration rating:3, 5, 10, 20, 30 and 40 microns
    Application:used as hydraulic system tanker to ensure the cleanliness of oil
    Operating pressure:0.6mpa
    Working temperature: 5-80℃
    Replacement or not:Replacement

    Hydraulic oil filter cart:

    1. To filter the oil which is filled up in hydraulic lubrication systerm, to establish equipment periodic maintenance.
    2. The by-pass filtration for the working hydraulic lubrication system.
    3. The circulation filtration before hydraulic lubrication system in motion
    4. The oil of hydraulic lubrication system is filtered and pumped without the pump of equipment itself.
    Function:be used as hydraulic system tanker to ensure the cleanliness of oil, but also used as by-pass circulation
    filtering equipment of the hydraulic system for regular cleanliness. It can be maintain the pollution of hydraulic system,
    keep the system work properly, and prolong the service life.

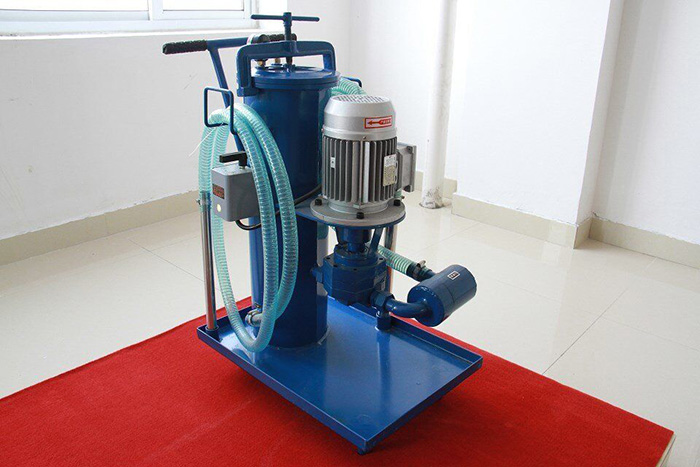

    Product pictures:









    上一篇：没有了

    下一篇：Lefilter brand OF5 Series Pushcart Oil Purifier

    Model LUCA-16 LUCA-40 LUCA-63 LUCA-100
    Rated flow L/min 16 40 63 100
    Temperature  °C 5-80
    Recommended viscosity CSt 10-160
    Rated pressure MPa 0.6
    The original pressure loss MPa ＜0.02
    First coarse filtration accuracy μm 100
    Second coarse filtration accuracy μm 80
    Third coarse filtration accuracy μm 50
    Forth precision filtration accuracyμm 3、5、10、20、30
    Voltage V Three-phase AC380V   Two-phase AC220V
    Motor Power kw 0.37 0.75 1.1 1.5
    Weight kg 60 90 100 110
    Dimensions mm 920x470x350 930x648x400 960x560x400 960x560x400


    Model LUCB-16 LUCB-40 LUCB-63 LUCB-100
    Rated flow L/min 16 40 63 100
    Temperature  °C 5-80
    Recommended viscosity CSt 10-160
    Rated pressure MPa 0.6
    The original pressure loss MPa ＜0.02
    First coarse filtration accuracy μm 100
    Secondary precision filtration accuracy μm 3、5、10、20、30
    Voltage V Three-phase AC380V   Two-phase AC220V
    Motor Power kw 0.37 0.75 1.1 1.5
    Weight kg 60 90 100 110
    Dimensions mm 800x1440x1475 800x1440x1475 800x1440x1475 800x1440x1475

    Model LUCA-16 LUCA-40 LUCA-63 LUCA-100
    Rated flow L/min 16 40 63 100
    Temperature  °C 5-80
    Recommended viscosity CSt 10-160
    Rated pressure MPa 0.6
    The original pressure loss MPa ＜0.02
    First coarse filtration accuracy μm 100
    Second coarse filtration accuracy μm 80
    Third coarse filtration accuracy μm 50
    Forth precision filtration accuracyμm 3、5、10、20、30
    Voltage V Three-phase AC380V   Two-phase AC220V
    Motor Power kw 0.37 0.75 1.1 1.5
    Weight kg 60 90 100 110
    Dimensions mm 920x470x350 930x648x400 960x560x400 960x560x400


    Model LUCB-16 LUCB-40 LUCB-63 LUCB-100
    Rated flow L/min 16 40 63 100
    Temperature  °C 5-80
    Recommended viscosity CSt 10-160
    Rated pressure MPa 0.6
    The original pressure loss MPa ＜0.02
    First coarse filtration accuracy μm 100
    Secondary precision filtration accuracy μm 3、5、10、20、30
    Voltage V Three-phase AC380V   Two-phase AC220V
    Motor Power kw 0.37 0.75 1.1 1.5
    Weight kg 60 90 100 110
    Dimensions mm 800x1440x1475 800x1440x1475 800x1440x1475 800x1440x1475
