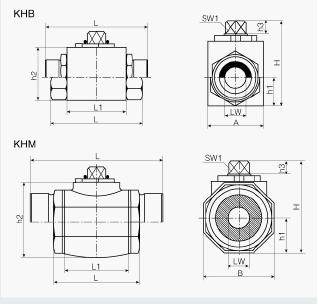

KHB/KHM High Pressure Ball Valve
1.The advantages
By controlling the instructions on the handle mandrel slot observe switch position limit switches position through the stopper pin and limit pad, fitted on the control mandrel seal support ring (DN04-50), and equipped with a support ring on the connector body sealing (DN32-50), no leaks, no need to manually re-tune the seals using the principle of the float seal, sealed on both sides, full flow undamped flow easy easy medium through-flow operation.
(Applicable DN04-50) surface phosphide or yellow zinc-plated surface phosphide (for DN32-50), available in stainless steel.

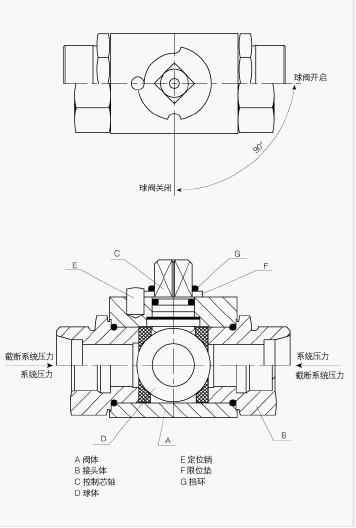

2.Function principle
Rotation control spindle so that the switch the ball from the start position to the closed position, the system pressure of the sphere toward the non-pressure side of the sealed bowl does not leak a cutting stream.
3.Application
High Pressure Ball Valve KHB-KHM for the truncated stream hydraulic circuit applications :
1)Machine tool
2)System Flow
3)Construction Machinery
4)Ferrous Metallurgy
4.Hydraulic parameters
1）Working pressure
PN315bar to PN500bar
2）Working medium
Applies to mineral oils, lubricants and other.
3）Working medium temperature
-10 ℃ to +80 ℃
