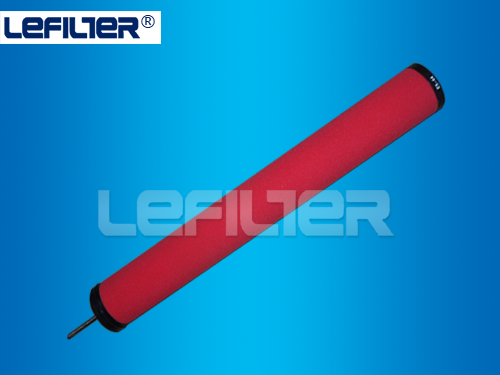

E5-36 Hankison Air Compressed Filters Replacement

E5-36 Hankison Air Compressed Filters Replacement



 Supply American Hankison Filter replacement

Used for filter out a lot of luquids and 3-micron-sized aggregates,to achieve 5ppmw/w,remaining maximum oil content of first class.The two hole steel tube,to make the second level of 10μm mechanical separation. The deep fiber media filter 3 micron particles for solid and liquid which in the air compressor,after the rear cooler, before the other filters, for general protection purposes;used before the cold dryer, as pre-treatment device.

Hankison Filter-E5 level

Used for for coalescence small Water vapor and oil mist, Can filter out as small as 0.01 micron solid particles, to achieve 0.01ppmw / w maximum remaining oil content. Almost all of the moisture, dust and oil have been removed. Level 1 multi-fiber media and media filters, filter out larger particles in the air filter into the first two pre-filter before the first two layers bonded fiber media, filter out small condensate level for E3 before filtration and dry machine, the protective effect, after the cold dryer, ensure the air is not including oil.

Hankison Features

Filtration Code:C-class,T-class,A-class,H-class

Filter Accuracy:3μm,1μm,0.01μm ,0.01μm

Residual oil components:5ppm,1ppm,0.01ppm,0.001ppm

American Hankison Precision Filter Element New Style Series

Model Class FLOW Rate  NM3/min	E1 Degreasing deodorant filter element	E3 Super UF Degreasing Filter Element	E5 UF Degreasing Filter Element	E7 Ventilation Pipe Filter Element	E9 Separate Filter Element	Filter Precision (μm)	Residual Oil Component (ppm)
0.57	E1-12	E3-12	E5-12	E7-12	E9-12	E1:0.01	0.001
1	E1-16	E3-16	E5-16	E7-16	E9-16	E3:0.01	0.001
1.72	E1-20	E3-20	E5-20	E7-20	E9-20	E5:0.01	0.01
2.9	E1-24	E3-24	E5-24	E7-24	E9-24	E7:1	1
4.9	E1-28	E3-28	E5-28	E7-28	E9-28	E9:3	5
7.2	E1-32	E3-32	E5-32	E7-32	E9-32
11	E1-36	E3-36	E5-36	E7-36	E9-36
14	E1-40	E3-40	E5-40	E7-40	E9-40
18	E1-44	E3-44	E5-44	E7-44	E9-44
22	E1-48	E3-48	E5-48	E7-48	E9-48
