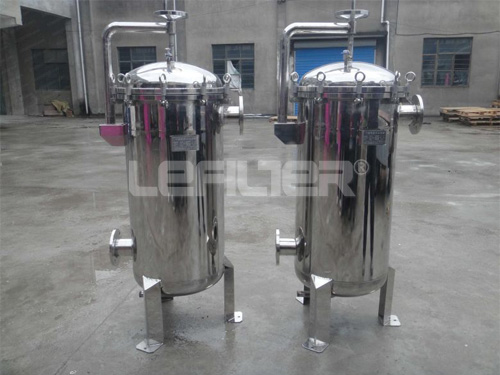

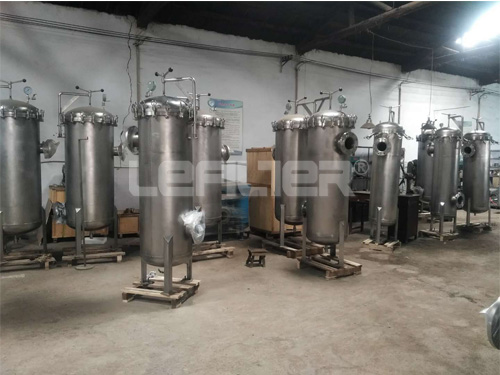

1. SS304 filter is a kind of multipurpose filtration equipment that is of novel- structure, small volume, convenient operation, energy saving, high efficiency and strong adaptability and it works in a closed environment.
2.The filter is a kind of pressure type filtering device, and the liquid flow from the filter casing side entrance tube into the filter element. The bag itself is fixed in the reinforcing net. Qualified filtrate can be acquired when the liquid penetrates the required fineness grade bag and the impurity particles will be captured. It is very convenient to replace the filter bag with only a little bit material consumption.
1. Housing material: stainless steel 304，316L
2. Diameter of the housing: Φ167 ~Φ1000mm
3. Height of the housing: 410 ~ 1500mm
4. Reference flow rate : 10T/h ~ 300T/h
5. Working pressure: 1.0Mpa
6. Quantity of the filter: 1 ~ 10 Pcs
7. Interface modes: clamp type, flange type (common flange, a movable flange)
1. Housing material: stainless steel 304，316L
2. Diameter of the housing: Φ167 ~Φ1000mm
3. Height of the housing: 410 ~ 1500mm
4. Reference flow rate : 10T/h ~ 300T/h
5. Working pressure: 1.0Mpa
6. Quantity of the filter: 1 ~ 10 Pcs
7. Interface modes: clamp type, flange type (common flange, a movable flange)
