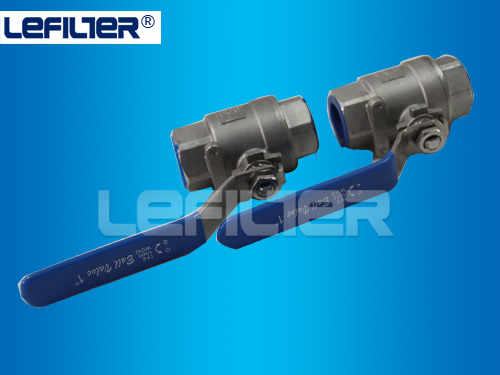

    Low Pressure Approved Oil Brass Gas Ball Valve

    Read Reviews23 Q&As Write a Review
    Descriptions: Threaded Ends: ANSI B1.20.1,BS 21/2779,DIN 259/2999,ISO 228 Testing: API 598 Material: ASTM A351 CF8/304,CF8M/316,CF3/304L,CF3M/316L ASTM A216 WCB Sizes: 1/4, 3/8, 1/2, 3/4, 1, 1-1/4, 1-1/2, 2, 2-1/2 ,3 ,4 Working pressure: 10

    PARAMETER

    Brand Name: Ball Valve
    Model Number: hc9600fkp13h
    Nominal filtration rating:
    Application:
    Operating pressure:
    Working temperature:
    Replacement or not:Replacement

    Descriptions:
    Threaded Ends: ANSI B1.20.1,BS 21/2779,DIN 259/2999,ISO 228
    Testing: API 598
    Material: ASTM A351 CF8/304,CF8M/316,CF3/304L,CF3M/316L
      ASTM A216 WCB
    Sizes:
    1/4", 3/8", 1/2", 3/4", 1", 1-1/4", 1-1/2", 2",
    2-1/2" ,3" ,4"
    Working pressure: 1000PSI/PN63
    Working pressure: -20 ~ 180°C (RPTFE), -20 ~300 °C (PPL)
    Working medium: Water,oil,gas,acid,steam,ect

    Features:
    Blow-out proof stem
    Investment Casting body
    Full bore
    Threaded type:NPT,BSP,BSPP,BSPT,PT,DIN,Rc,Rp
    Lockable handle is available
