LEFILTER off-line pulse dust collector
Brand Name: LEFILTER
Model Number: LELCM-2300
Nominal filtration rating:
Application:metallurgical industry steelmaking blast furnace, raw coal injection preparation plant, building mate
Replacement or not: Replacement

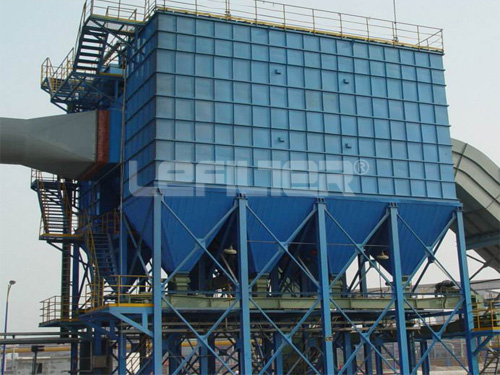

The CLCM-D/G long bag off-line pulse dust remover integrates the longest bag off-line pulse dust removal technology currently available in the world and introduces the world-leading long bag offline pulse dust remover technology to users.
Structure description long bag offline pulse dust collector:
1. Compressed air line and its decompression device, oil-water separator, oil mister and so on.
2. Shell part: including clean room (or gas purge box, air box), filter box. Chamber partitions, access doors, and shell structure. The cleaning room is provided with a poppet valve and a flower plate, and a short pipe is blown. The filter room is provided with an inlet and an outlet air duct body, which includes an inlet/outlet air duct and a middle partition.
4. Ash hopper and unloading mechanism: There are hoppers and screw conveyors.
5. Pulse cleaning device: including pulse valve, air bag, poppet valve and its solenoid valve.
6. If the equipment is used for dust removal from a power plant boiler, its structure has an additional design to suit the special requirements of the user.
7. Aisle platforms and railings: This section fully considers the ease of maintenance and guarantees safe operation.
