Brand Name: Atlas Copco
Model Number: 1613740700
Nominal filtration rating:0.1um~100um
Application:Metallurgy Petrochemicals Textile Electronic and pharmaceutical field
Operating pressure:10-210bar
Working temperature: -20-100℃
Replacement or not:Replacement

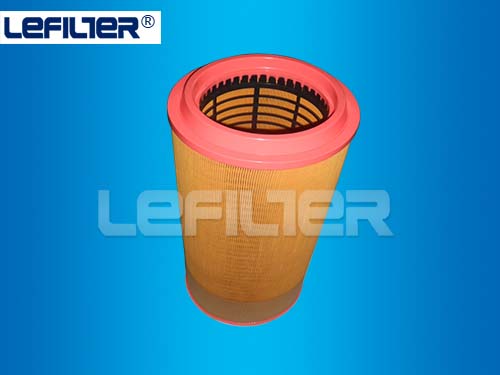

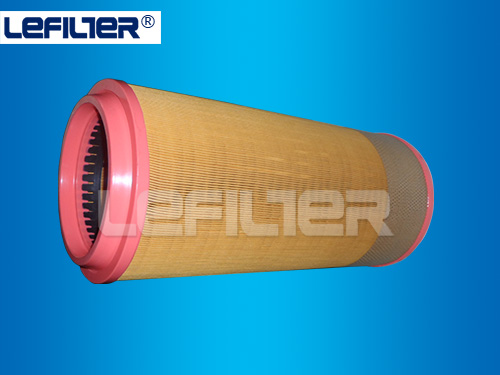

The material of filter element of Air Filter is made of wood pulp filter paper of HV Company in America and Ahlstrom Company in Korea. Impurities such as suspended particles, sand, water and oil-gas mist in the air can be filtered through the filter element of the Air Filter.
·Air filtering accuracy: ≤10μm Air filtering efficiency: 98%
·Service life of the air filter element: about 2000h
·Back blow regularly.
·The air input capacity of the filter must outnumber the capacity of the host machine.
·Air filter with low air intake resistance and high dust containing capacity is preferred.
·For longevity, please store the filter in dry and airy spaces.
Air filter element applicable to Atlas screw air compressor:
Model | Original P/N |
External diameter (mm) |
Height(mm) | Goods No. of us |
GX5/7/11C | 1613900100 | 100 | 80 | LFA40410080 |
GA55 | 1613950100 | 246 | 365 | LFA40324325 |
GA37 | 1619279700 | 166 | 340 | LFA40116340 |
GA30/37/10BAR | 1613740700 | 159 | 375 | LFA40315340 |
GA37+ | 1622185501 | 230 | 360 | LFA40323325 |
1. Dimension:φ246*153*375 mm
2. Precision: 5-10 um
3. Material: American HV(Binzer) and Korean Ahistrom pure wood pulp filter paper
4. O-Ring: NBR, VITON
5. Life span: about 2000 hours
6. Filtering efficiency: 98~99.99%
1. Dimension:φ246*153*375 mm
2. Precision: 5-10 um
3. Material: American HV(Binzer) and Korean Ahistrom pure wood pulp filter paper
4. O-Ring: NBR, VITON
5. Life span: about 2000 hours
6. Filtering efficiency: 98~99.99%
