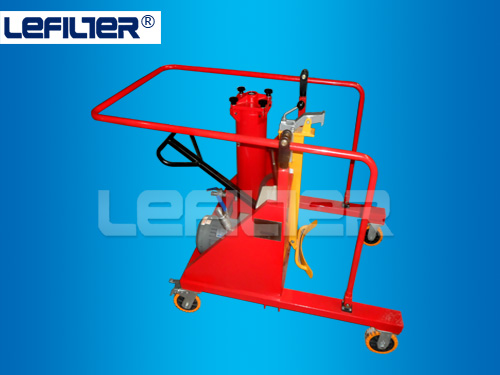

LUCB high precision oil filter machine LUCB-16

Product introduction:

1.This kind of oil filter machine is special because it can carry a oil drum. If you need, you can push the oil filter machine
    with the oil drum everywhere. It is very convenient.

2.The machine is equipped with two stages of filters, the first stage filter is a coarse filter which can filter the original oil to
   protect the oil pump, after the first stage filtration, the second stage filter is a fine filter which can filter the oil effectively
   to get the superfine oil.

3.It is widely used in hydraulic and lubrication systems in a variety of industries.

Pricture show:

Product features:

1.Convenient offline filtration

2.Simple to operate

3.Greater system availability

4.Reduction in Life Cycle Cost LCC

5.Simultaneous monitoring of the particle contamination

Technical data:

1.Model: LUCB-16

2.Flow rate: 16 L/min

3.Operating pressure: 0.6 Mpa

4.Viscosity range: 10-160 CSt

5.Initial pressure loss: less than 0.02 Mpa

6.Fluid temperature: 5-80 ℃

7.First stage filter precision: 100 um

8.Second stage filter precision: 3, 5, 10, 20, 30 um

9.Voltage: AC 380V/3phase, AC220V/2phase

10.Power: 0.37 kw

11.Weight: 60 kg

12.Size: 800*1440*1475 mm

Products application:
